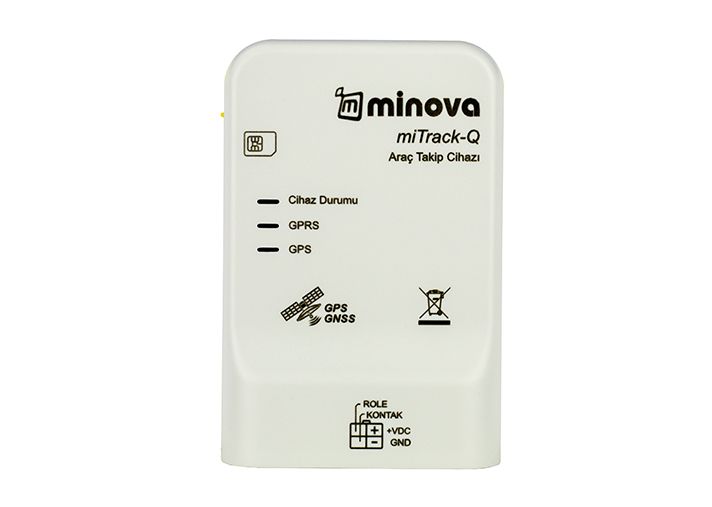

miTrack-Q
GPRS/GNSS Vehicle Tracking Device


miTrack-Q is a GPRS/2G/GNSS based tracking terminal. Installation is easy and fast with internal GSM and GPS antennas. Battery option which provides generate an alarm against dismantled is available. Measuring driving dynamics and severity (aggressive acceleration, sudden brakes, hard turns, etc.) is possible through standard Motion Sensor. Input/Output ports for contact detection and motor blockage are available as standard.


miTrack Series terminals support SSL/TLS security standards as well as standard communication protocols such as MQTT, which can be easily integrated into known IoT platforms (Google®IoT, Microsoft®Azure, AWS®IoT, Cumulocity® etc.)


Specifications:

  • Compact Size, Durable and Light Weight Design

  • Internal GSM and GNSS Antennas

  • 99 Channels GPS and Glonass Geolocation Receiver

  • Indoor Geolocation from Assist GPS and Base Stations

  • MQTT ISO/IEC 20922:2016 Communication Protocol Support

  • SSL/TLS Support

  • Contact Detection and Motor Blockage

  • Integrated Motion Sensor (G Sensor)

  • Remote Parameter and Software Update (FTP FOTA)

  • Built-in Battery Option

  • 3 Status Indicator LEDs (GPS, Server, GSM Connection Status)

  • Up to 10.000 Data Storage with Internal Memory in Places without Reception

TECHNICAL SPECIFICATIONS

PROCESSOR

ARM Cortex 32Bit High Performance Processor, 50MIPS

COMMUNICATION

TCP/IP,  UDP,  SMTP,  ICMP,  FTP,  SMS

MQTT ISO/IEC 20922:2016 Communication Protocol Support

SSL/TLS Support

GSM/GPRS

GSM Quad-Band (850/ 900/ 1800/ 1900MHz)

GPRS Class 12

GPRS Mobile Station Class B

Internal GSM/GPRS Antenna

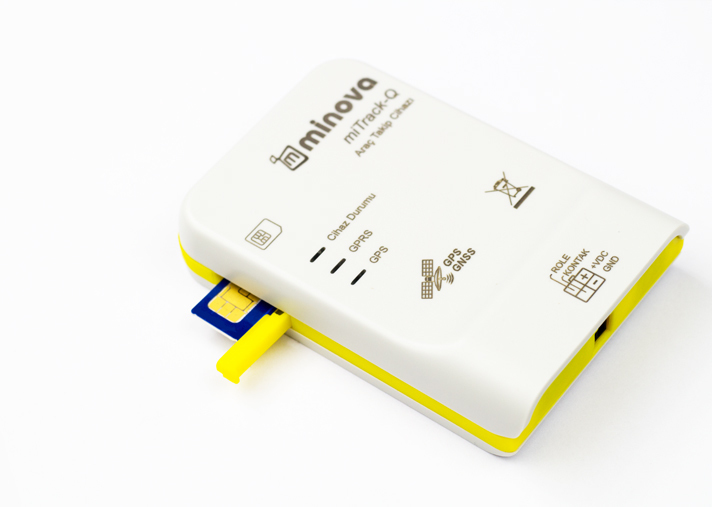

Double SIM Card Support (SIM-Card, Embedded-SIM)

GPS/GNSS

99 Channel Receiver Module

Internal LNA and Passive Ceramic GPS Receiver Antenna

Assisted GPS and LBS (Geolocation with Base Stations) Support

Cold Start <35 sec.    Hot Start <1 sec.

MEMORY

8 Mbit Flash

10.000 Offline Data Capacity

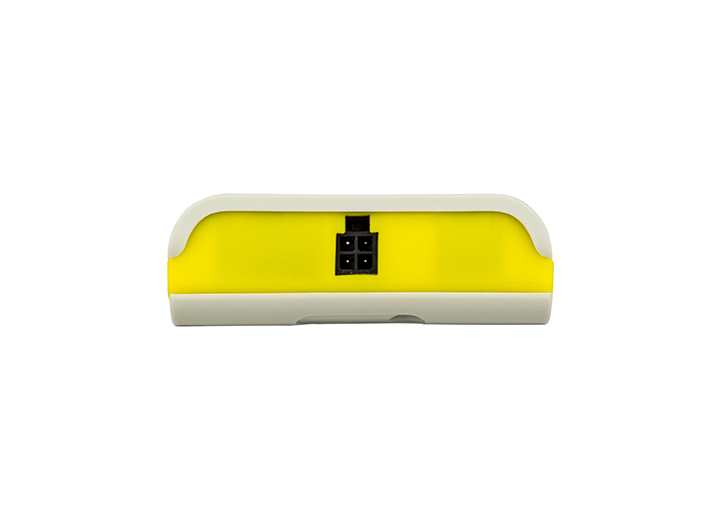

INPUT/OUTPUT

1x Contact Detection Input (40V DC Max.)


1x Motor Blockage Relay Driving Digital Output (500mA 40V DC Max.)

ADDITIONAL SPECIFICATIONS

LED Indicators

900mAh Li-Ion Battery (Optional)

Power Cut and Low Battery Alarm

POWER

9-35V DC Operating Voltage

1 Watt Mean Power Consumption

ENVIRONMENTAL CONDITIONS

-20°C … +80°C Industrial Operating Range

-40°C … +85°C Storage Range

SIZE

96x64x22 mm

WEIGHT

74 gr.
