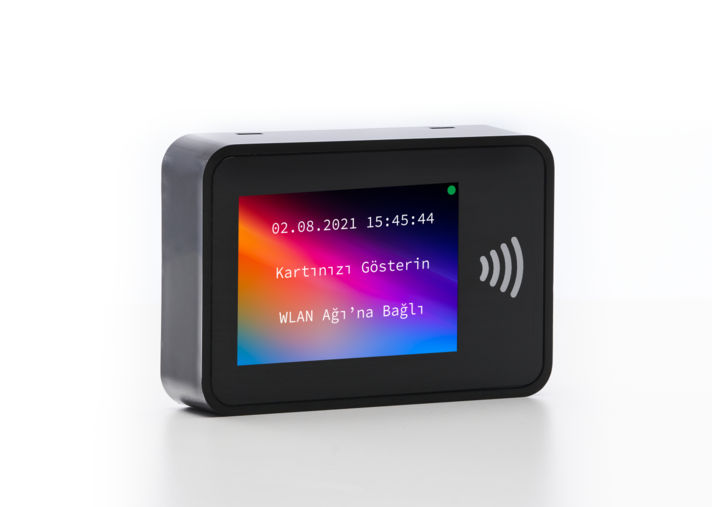

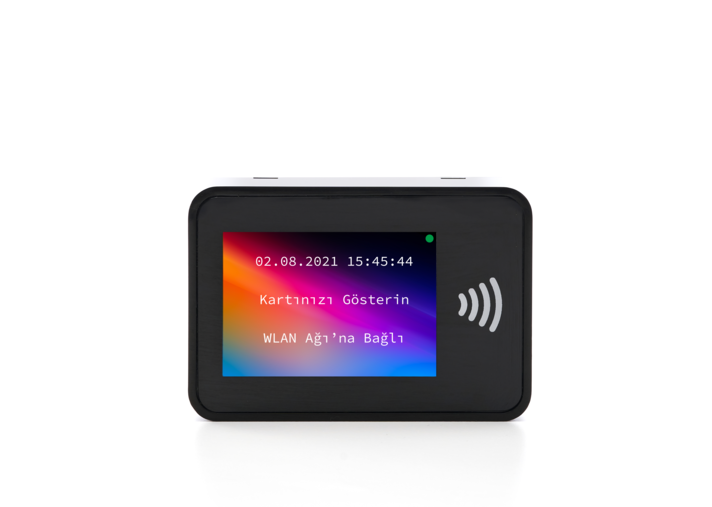

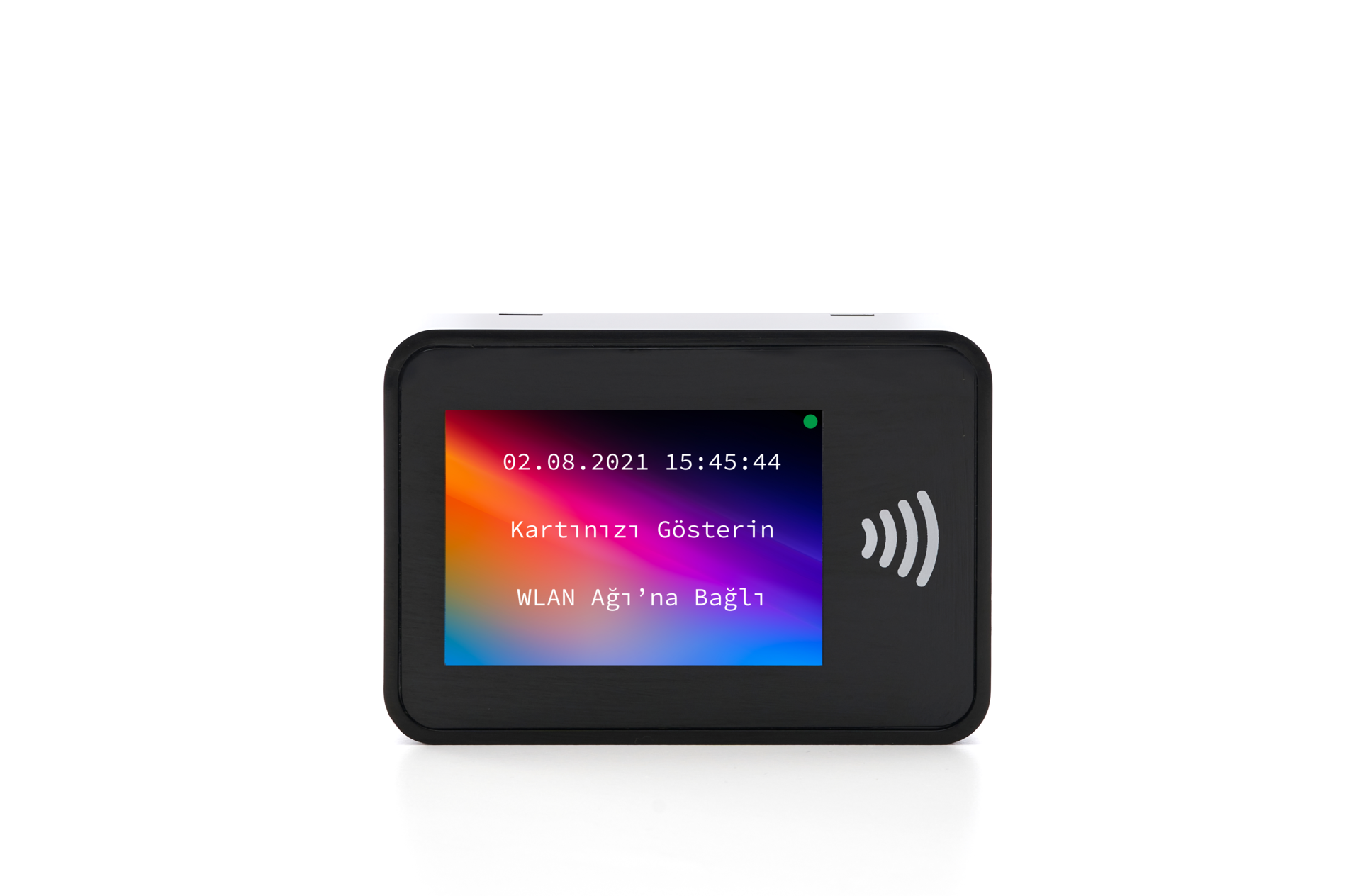

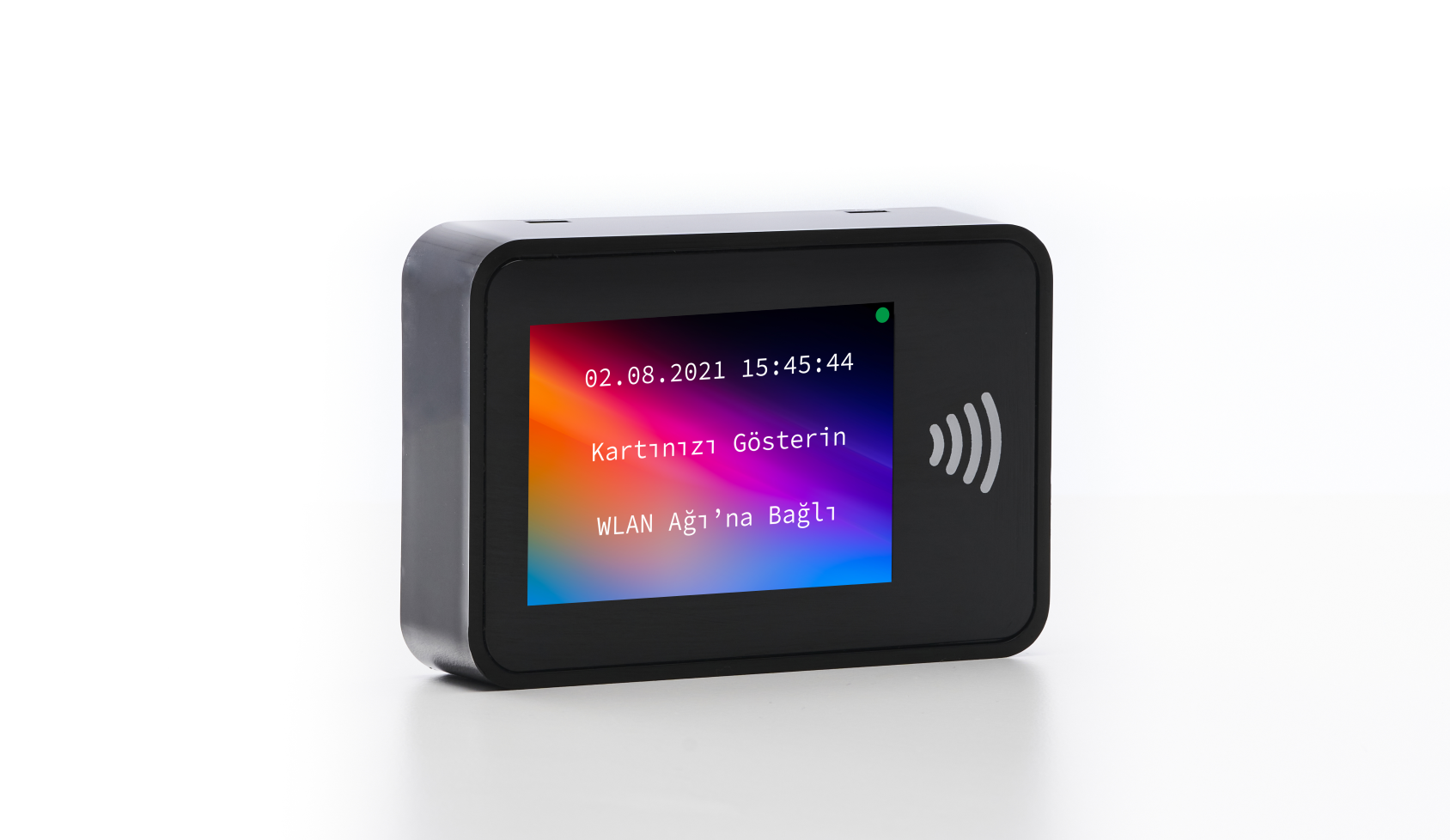

MCR04-W
Wi-Fi & Bluetooth RFID Reader and Access Control Terminal

MCR04-W is a programmable 13.56MHz RFID Card Reader&Communication Terminal Device with Wi-Fi/Bluetooth connectivity, color TFT screen and high security protocols (such as HTTPS, MQTTS, TLS/SSL) supportability which can be used in Access Control, Personnel Attendance Control Systems, Closed-Loop Payment Systems, Telemetry&IoT applications etc.


Besides the device also includes Vibration(3D Accelerometer), Air Quality, Temperature and Humidity sensors for IoT and Smart Industry applications.


The terminal device can be produced as an OEM product for system integrators and also the SDK of the product can be licensed.


Specifications:

  • 3.5” 320x240 Pixel Color TFT LCD

  • Multi-Language/Font (UTF-8) Support

  • QR Code (on Screen) Support

  • RFID 13.56 MHz ISO/IEC 14443 A/B Contactless MIFARE Card Reading

  • Contactless Card Standards: NFC ICODE®, ISO/IEC 15693, ISO/IEC 18000-3, FeliCa

  • IEEE 802.11b/g/n Wi-Fi & Bluetooth 4.2

  • Internal Relay (x2)

  • Digital Input (x2)

  • Easy Configurability&Control on Network (with miFinder Application)

  • Internal Bootloader

  • OTA Update

  • Internal FTP/Web Server

  • Online/Offline Operation

  • 2x 16MB Flash Memory (Internal)

  • 8GB uSD Memory *

  • TLS/SSL, MQTT, MQTTS, HTTPS Support

  • RS232/485 Communication Ports

  • Vibration (3D Accelerometer), Air Quality, Temperature-Humidity Sensors

  • 3500mAh Rechargeable Industrial Li-Ion Battery  *

       *Optional

TECHNICAL SPECIFICATIONS

READ/WRITE

Contactless Card Operating Distance Up To 10cm
MIFARE Classic/Plus/DESFire/Ultralight

NFC ICODE

DISPLAY

3,5” 320x240 Pixel TFT LCD 24-Bit Color

Multi-Language/Font Support (Turkish, Cyrillic, Chinese, Greek, Arabic etc.)

CPU

32-bit ARM Çift Çekirdek 240MHz CPU

MEMORY

520KB SRAM
2x 16MB Internal Flash Memory

8GB uSD Memory*

COMMUNICATION

Wi-Fi IEEE 802.11b/g/n (Double Mode: Access Point and Wi-Fi Client/Station)

Bluetooth BR/EDR BLE 4.2

RS232 Port (300-115200 Baud)
RS485 Port (300-115200 Baud)*

Wiegand*

INPUT/OUTPUT

2x Relay Output

2x Opto-Isolated Digital Input

EXTRA SPECIFICATIONS

Online & Offline Operating
Real-Time Clock

Rechargeable Industrial Li-Ion Battery*

Audio&Video Player*

Buzzer

Temperature and Humidity Sensor*

Air Quality Sensor*

3D Accelerometer and Vibration Sensor*

POWER

6-36V DC Operating Voltage (or 5V DC*)

Fuse

Short-Circuit / Overload Protection

ENVIRONMENTAL CONDITIONS

-30 °C … +75 °C Operating Temperature Range

-40 °C … +85 °C Storage Temperature Range

BOYUTLAR

110 x 76 x 27 mm


* = Opsiyonel
