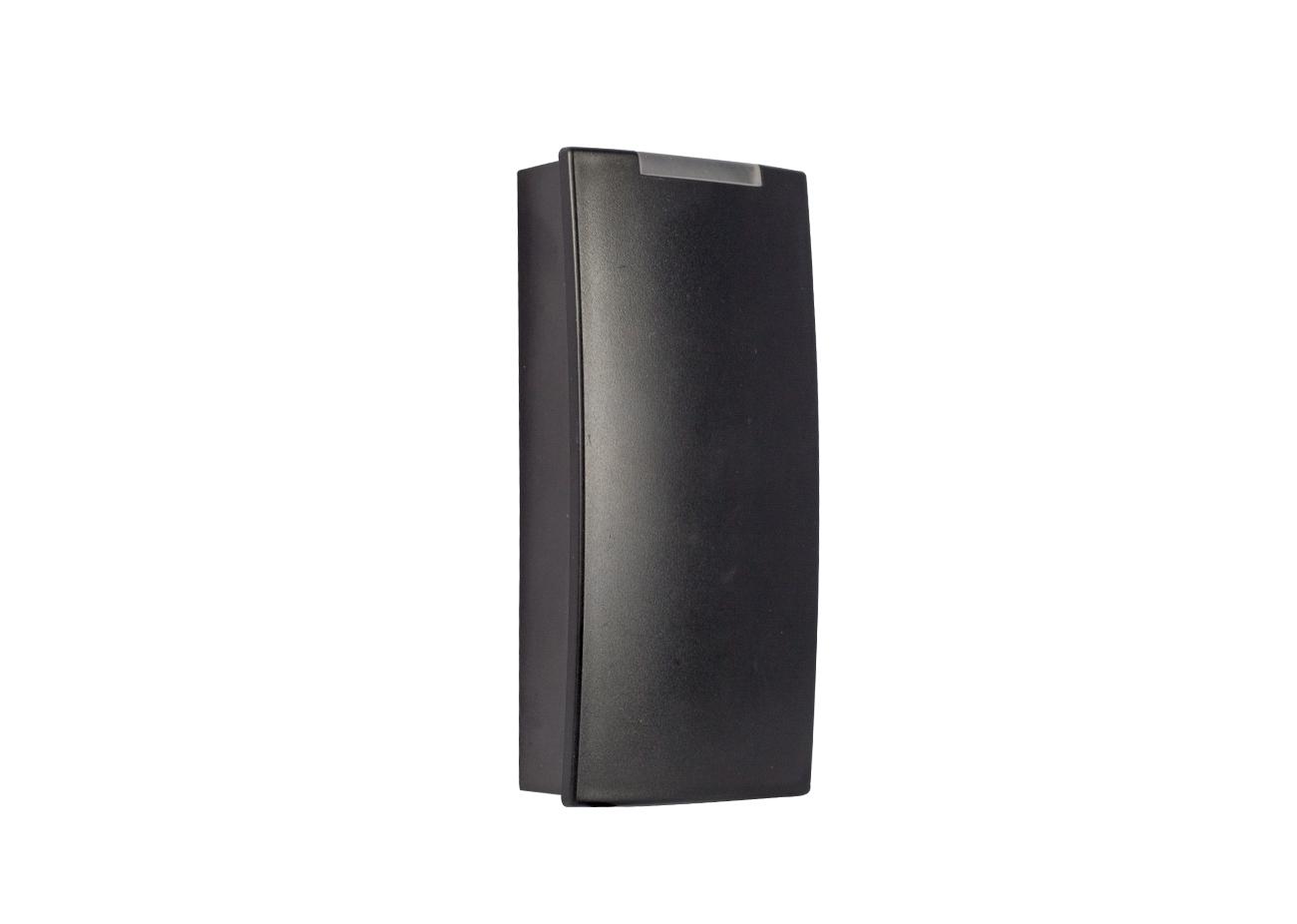

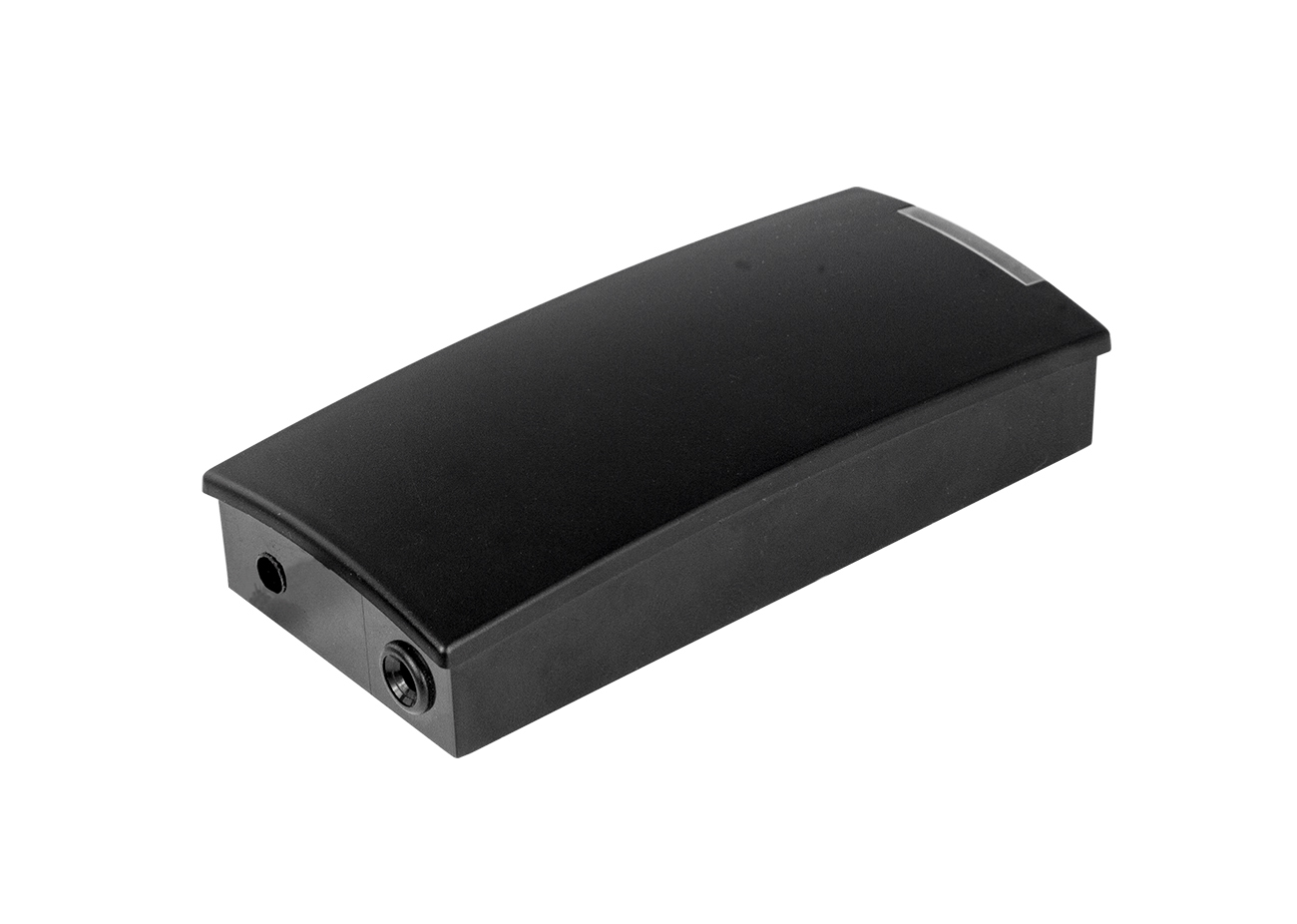

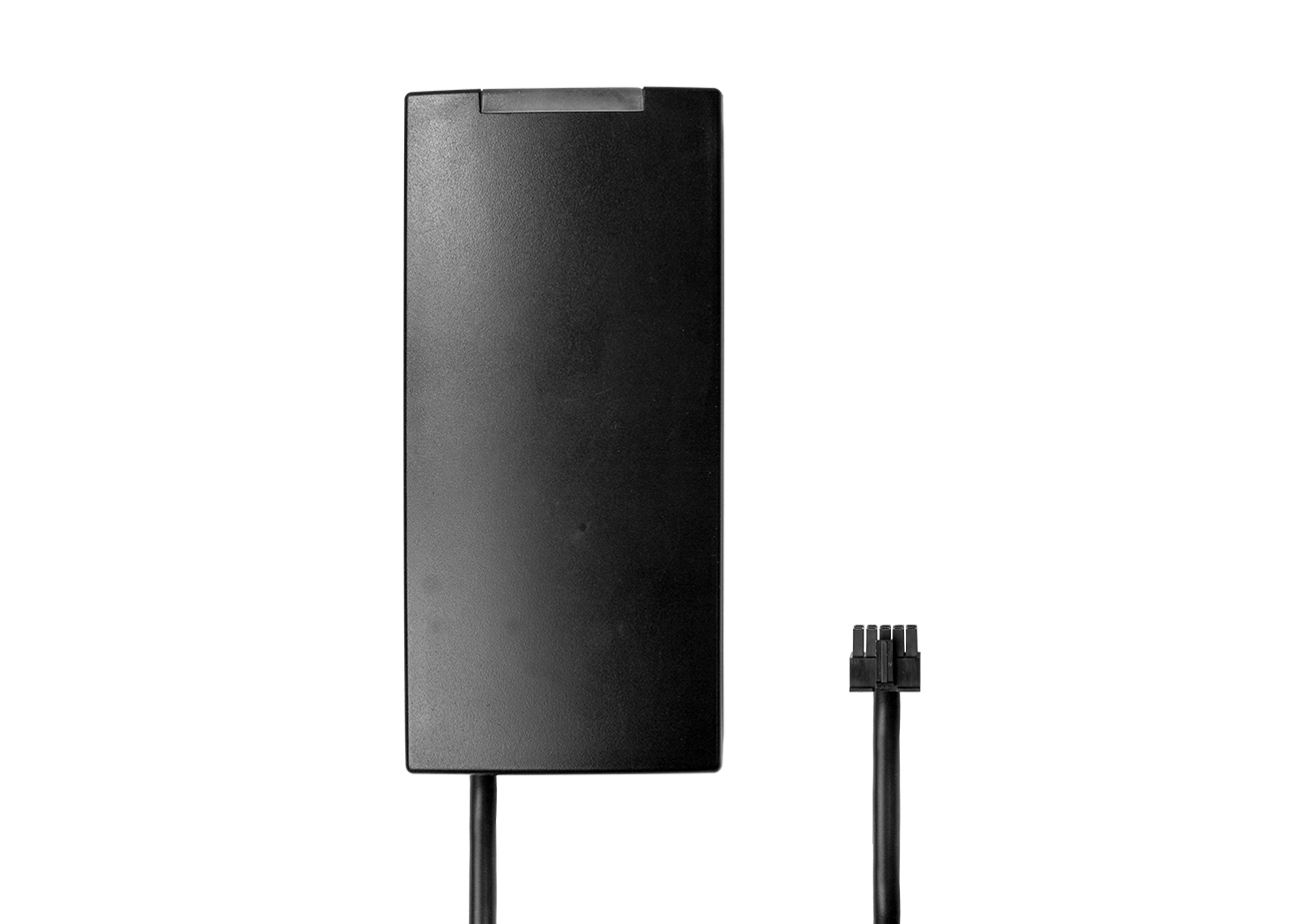

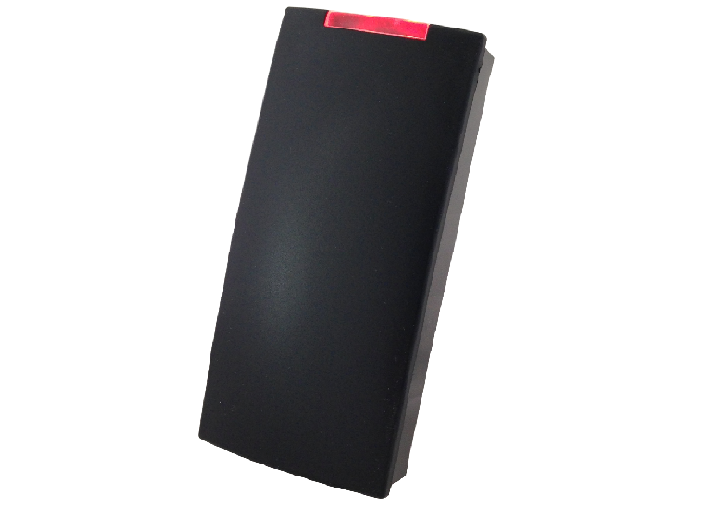

MCR01 Card Reader & Access Control Terminal

MCR01 is a multi-purpose, programmable, 13.56 MHz RFID Card Reader terminal usable in Access Control, PACS, etc. applications.



The terminal also supports read/write and programming of cards with MIFARE® and ISO14443A standards with Wiegand, RS232 or RS485 communication options. MCR01 calso be integrated with other MCR family terminals.



Specifications:

  • 13.56 MHz Contactless MIFARE/RFID Reader (4-Byte, 7- Byte UID Support)

  • Connectibility to Access Control Panels

  • Ability to Send Card Information Over Wiegand/RS232/RS485

  • Led & Buzzer Control Over Panel

  • Epoxy Isolated Production for Outdoors

TECHNICAL SPECIFICATIONS

READ-WRITE

MIFARE® ISO14443A (B*)
Classic, DESFire®/Plus and Ultralight Contactless Card Read/Write

PROCESSOR

32-bit ARM Cortex CPU

COMMUNICATION

RS232 Port (300-115200 Baud)
RS485 Port (300-115200 Baud)
Wiegand Support

ADDITIONAL SPECIFICATIONS

Audio Alarm (Buzzer)

LED Indicator

POWER

5V DC*

6-18V DC Operating Voltage

ENVIRONMENTAL CONDITIONS

-40 °C … +85 °C Industrial Operating Range



* = Optional

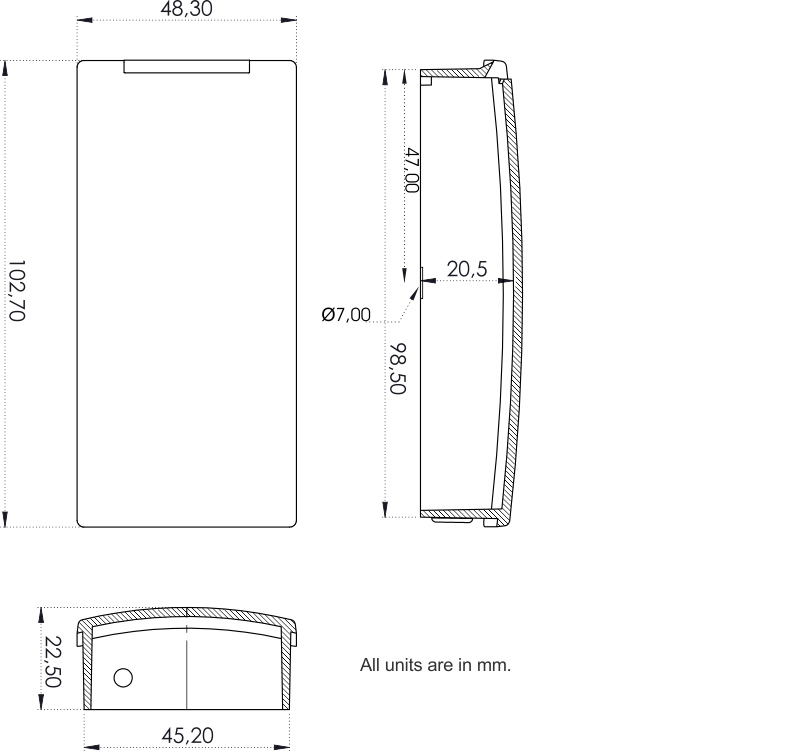

MECHANICAL SPECIFICATIONS
