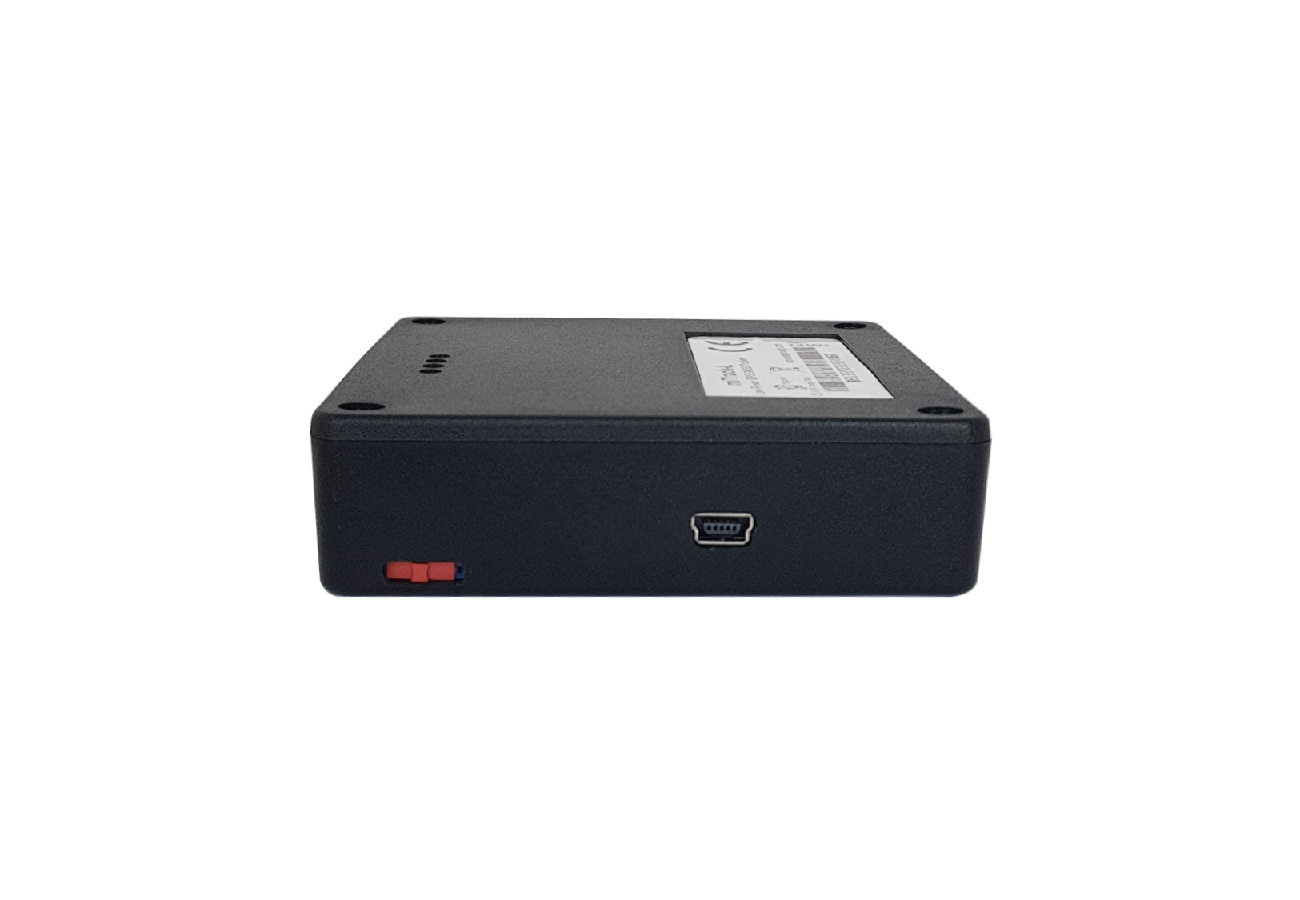

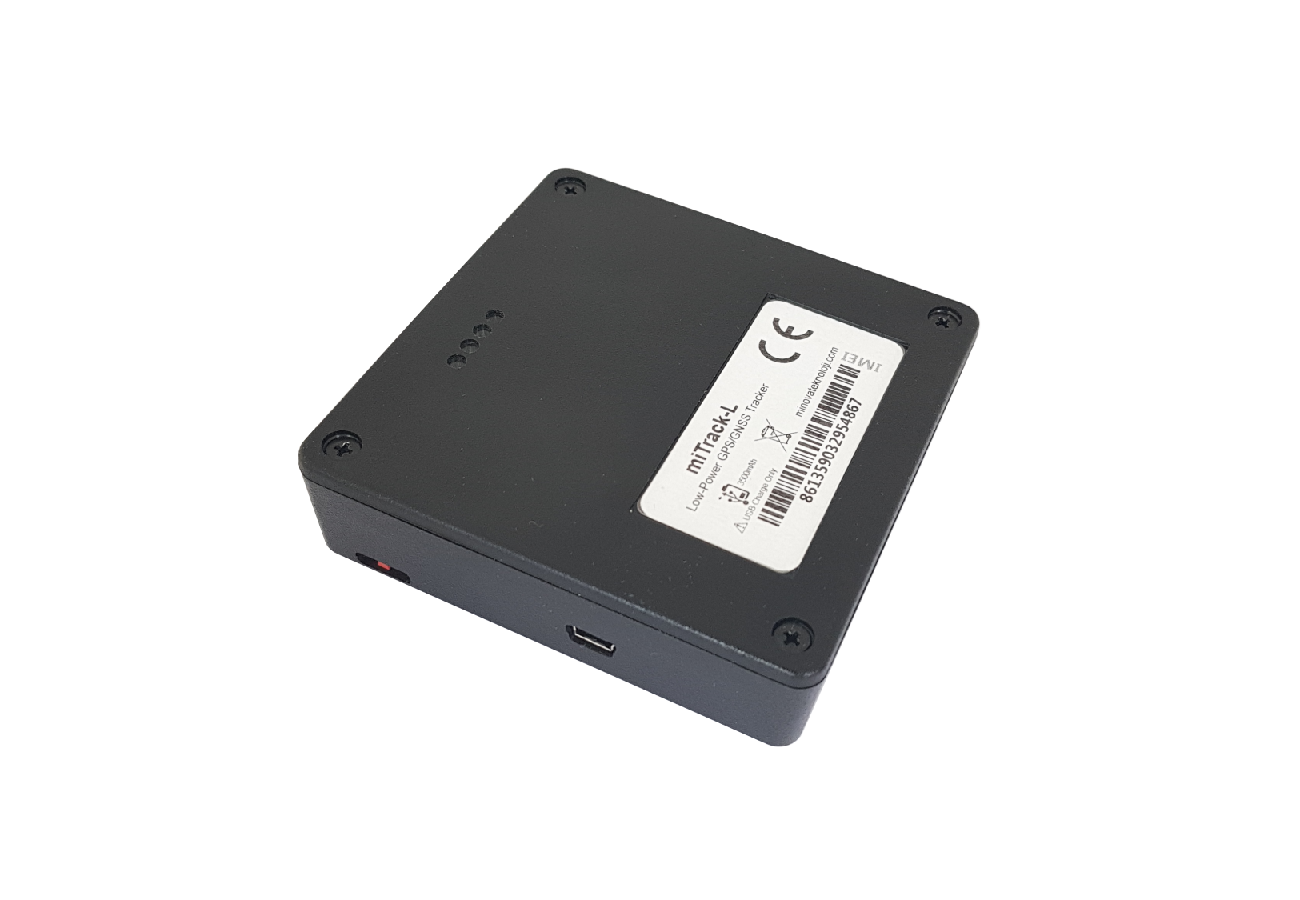

miTrack-L
Asset Tracker

miTrack-L is a GPRS/2G/GNSS based tracking terminal. It can be used without installation with compact structure and internal GSM, GPS antennas.


High capacity (3500mAh) Lithium-Ion battery enables long use without charging. Internal Temperature/Humidity Sensor allows monitoring of environmental conditions. Hard blows can be detected via Motion Sensor. The frequency of location and telemetry transmission can be adjusted depending on time, motion, temperature-humidity change, base station change. Parameters can be changed through USB port and charging is available on the same port.


Specifications:

  • Compact Size, Durable and Light Weight Design

  • Internal GSM and GNSS Antennas

  • 99 Channels GPS and Glonass Geolocation Receiver

  • Indoor Geolocation from Assist GPS and Base Stations

  • Contact Detection and Motor Blockage

  • Integrated Motion Sensor (G Sensor)

  • Remote Parameter and Software Update (FTP FOTA)

  • High Capacity (3500mAh) Lithium-Ion Battery

  • 4 Status Indicator LEDs (GPS, Server, GSM Connection Status, Charge Level)

  • Up to 10.000 Data Storage with Internal Memory in places without reception

  • Internal Temperature-Humidity Sensor

  • Charging, Parameter and Software Upgrading Over USB

TECHNICAL SPECIFICATIONS

PROCESSOR

ARM Cortex 32Bit High Performance Processor, 50MIPS

COMMUNICATION

TCP/IP, UDP, SMTP, ICMP, FTP, SMS

Remote Software Upgrade via FTP

Parameter Change via TCP/IP and SMS

GSM/GPRS

GSM Quad-Band (850/ 900/ 1800/ 1900MHz)

GPRS Class 12

GPRS Mobile Station Class B

Internal GSM/GPRS Antenna

Double SIM Card Support (SIM-Card, Embedded-SIM)

LBS (Geolocation with Base Stations)

GPS/GNSS

99 Channels Receiver Module

Internal Passive GPS Receiver Antenna

MEMORY

1MB (8Mbit) Internal Flash

INPUT/OUTPUT

1x micro-USB Power Input

ADDITIONAL SPECIFICATIONS

Temperature and Humidity Sensor

3D Motion (G) Sensor

On/Off Switch

Built-in 3500mAh Li-Ion Battery

LED Indicators

POWER

8-36V DC Operating Voltage

ENVIRONMENTAL CONDITIONS

-20°C … +80°C Industrial Operating Range

-40 °C … +85 °C Storage Range

90% Relative Humidity

SIZE

85x85x23 mm

WEIGHT

90 gr. (Incl. Battery)


MECHANICAL SPECIFICATIONS
