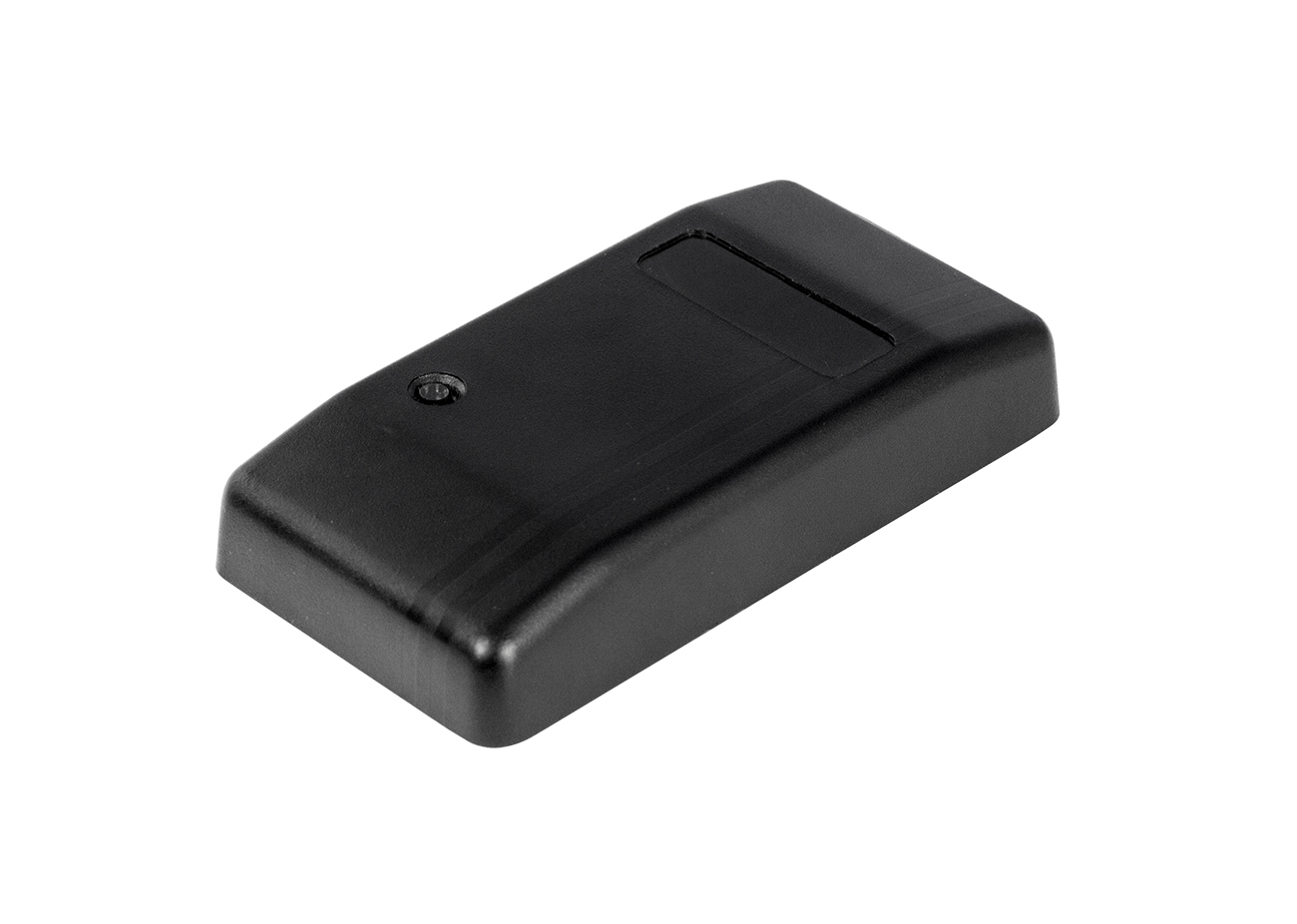

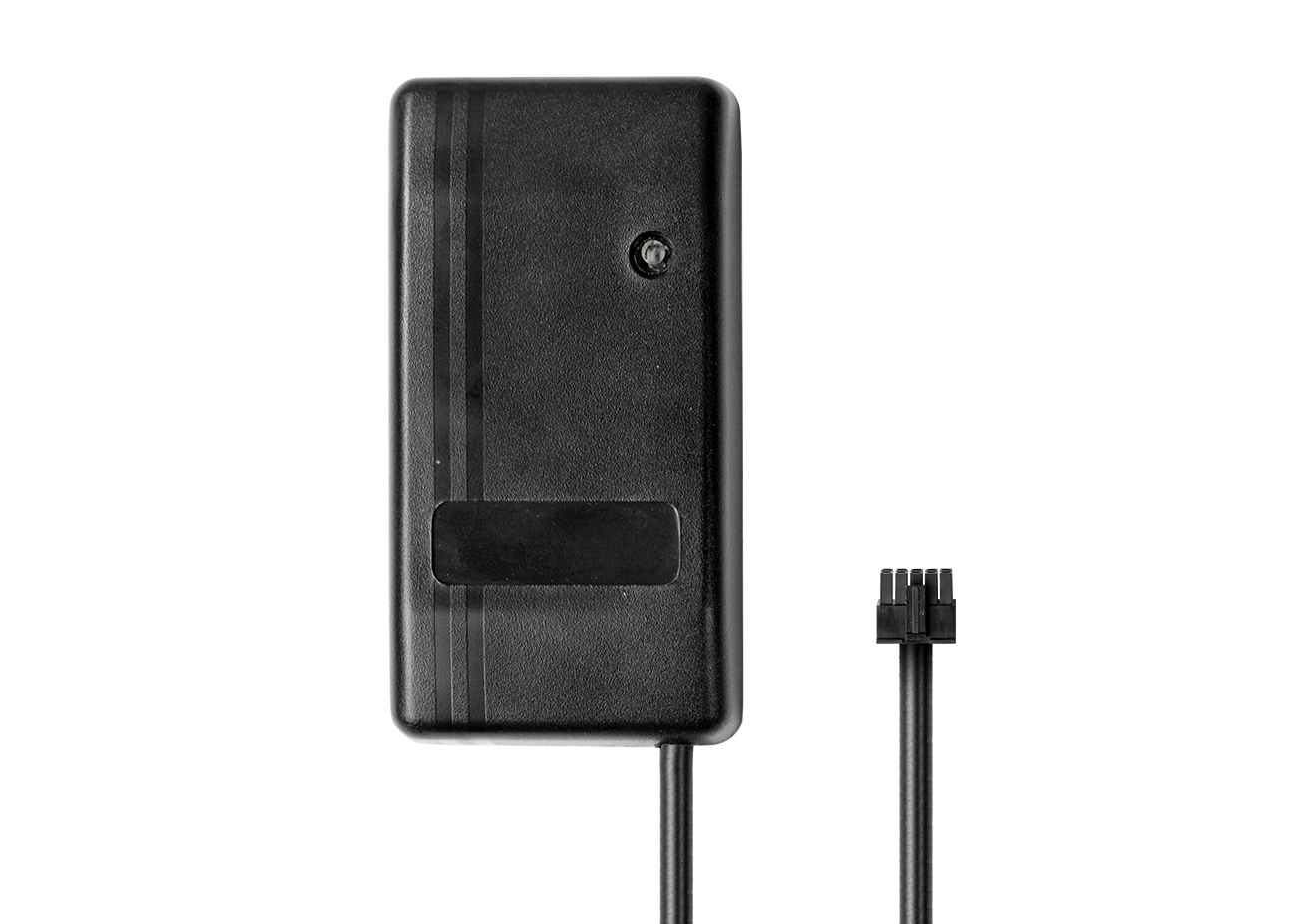

MCR-ATS DRIVER IDENTIFICATION UNIT

MCR-ATS contactless card reader, developed for vehicle tracking and fleet management projects, is connected to all vehicle trackers of the miTrack series via the RS232 port and is used for authentication of Driver ID Card assigned to the vehicle driver.


MCR-ATS can be used for releasing the vehicle with ID authentication in the projects with the motor blockage relay and vehicle blockage as well as the function of registering the driver ID and forwarding it to the central server.

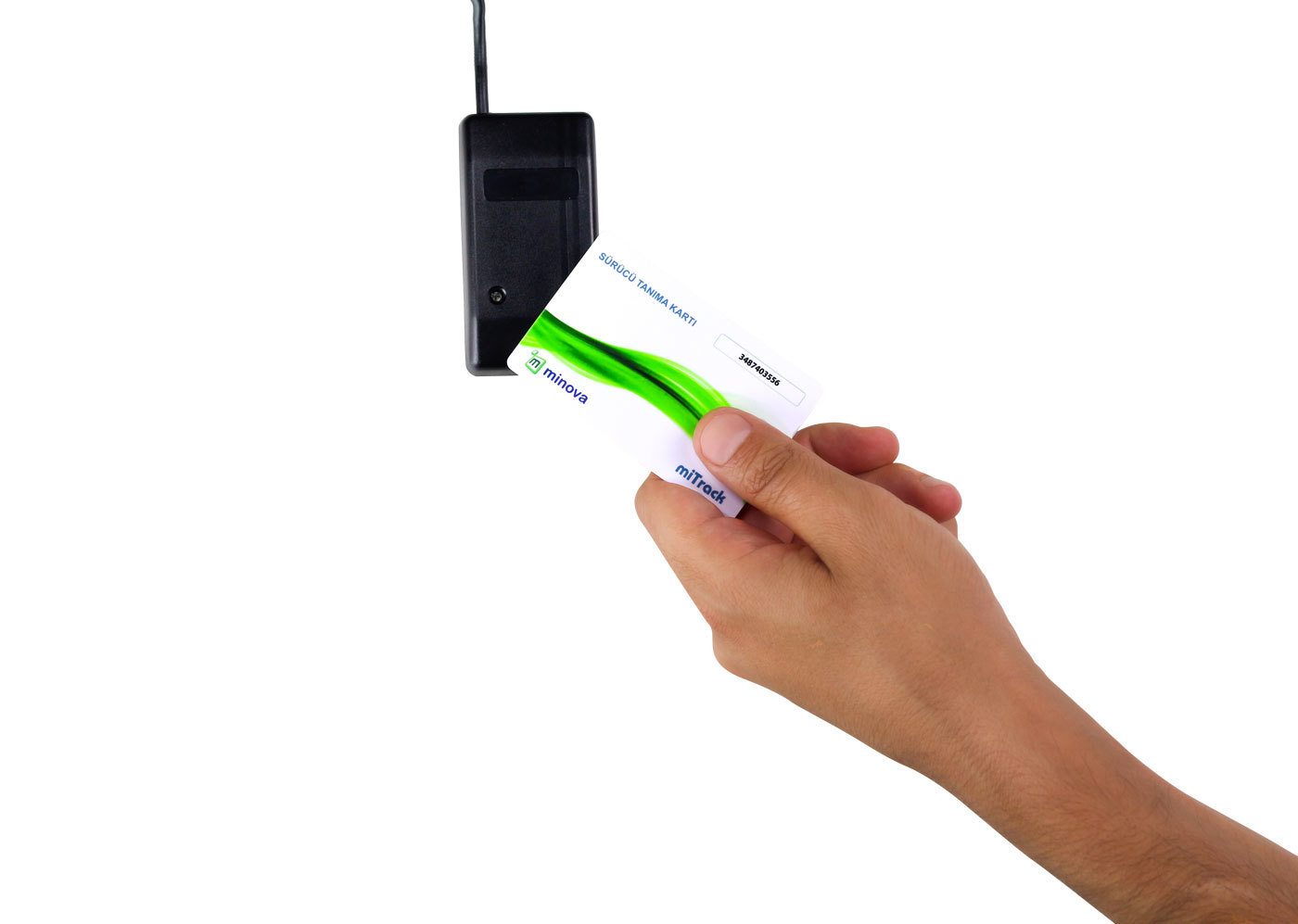

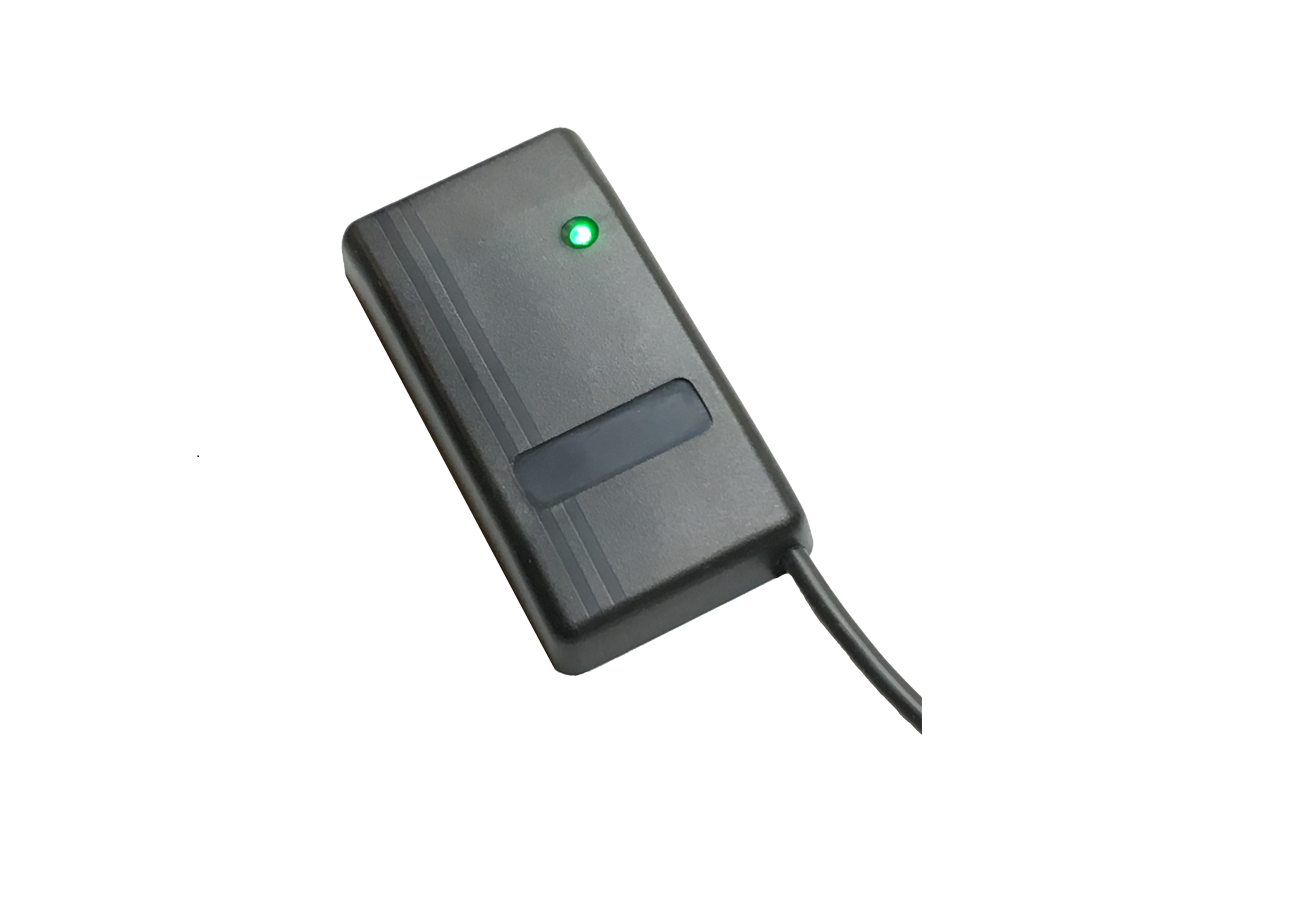

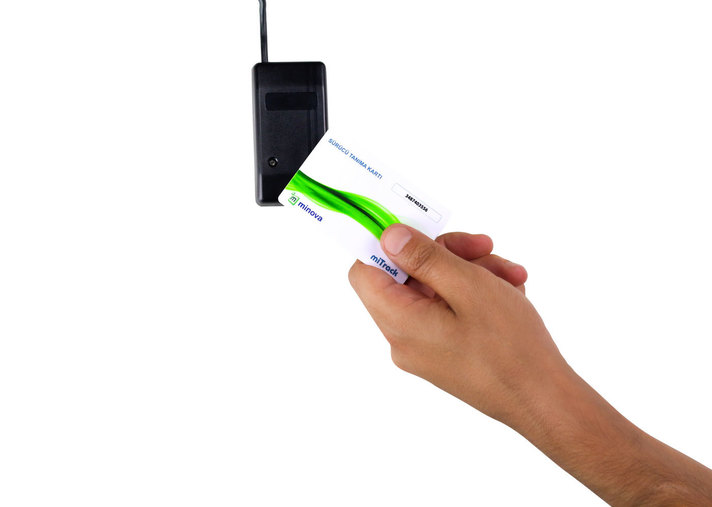

When the contactless card reading is performed, a visual response is given via green or red LED according to the confirmation received from miTrack vehicle tracking device. When the vehicle is moved without reading the card, an audio alarm is given through buzzer.

TECHNICAL SPECIFICATIONS

READ-WRITE

MIFARE® ISO14443A
Classic, Plus and Ultralight Contactless Card Read/Write
5 cm Contactless Card Reading Range

PROCESSOR

32-bit ARM Cortex CPU

COMMUNICATION

RS232 Port (300-115200 Baud)

ADDITIONAL SPECIFICATIONS

Buzzer Audio Alarm

LED Indicator

POWER

5-12V DC Operating Voltage

ENVIRONMENTAL CONDITIONS

-20°C … +80°C Industrial Operating Range

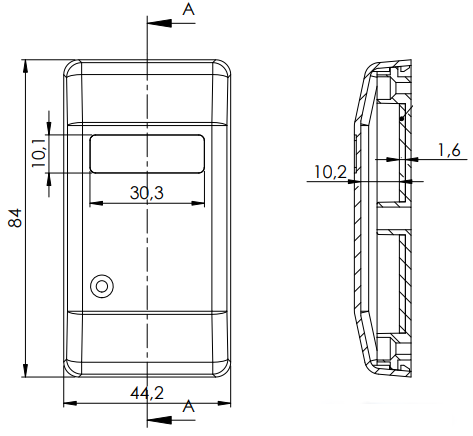

MECHANICAL SPECIFICATIONS
