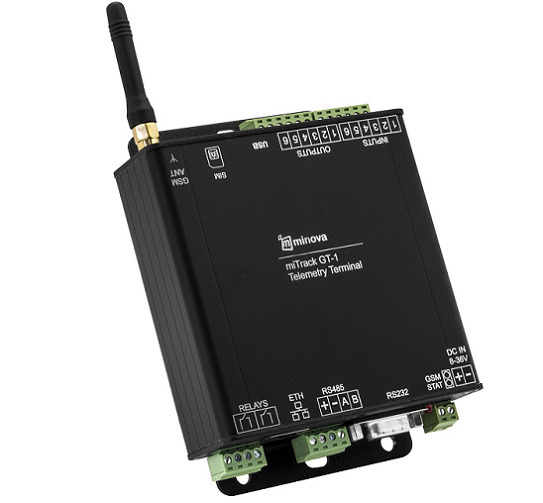

miTrack-GT1
Telemetry Terminal

miTrack-GT1 Telemetry Terminal is a Gateway & Communication unit developed for field data collection, remote control and Internet of Things (IoT) applications.


GT1 Series terminals support standard communication protocols such as MQTT, which can be easily integrated into known IoT platforms (Google®IoT, Microsoft®Azure, AWS®IoT, Cumulocity® etc.) for Industry 4.0 applications.


GT1 can be used with analog and digital input/output ports according to requirements, also as a gateway that can works with multiple sensors, input/output multiplexers and connected units over serial port, RS485 or MODBUS. GT1 supports Ethernet and GSM / GPRS / LTE. If the terminal cannot access its server over Ethernet, it can use the GPRS connection. Thanks to its internal memory, GT1 archives all process data and can be accessed backwards on demand.


Terminal can also be connected to the HMI display panel. By this way, the sensor values and alarms can be monitored and audited by the operators in the facility where the sensors are located.


The terminal can be used with a large number of sensors or peripheral devices which use interfaces such as MODBUS or RS485 / RS232.

Specifications:

  • Ethernet and GPRS/2G/3G/LTE/NB-IoT or Wi-Fi & Bluetooth

  • PPP, HTTP, TCP/IP, UDP, FTP

  • Easy Integration to Iot Platforms. ( Google®IoT, Microsoft®Azure, AWS®IoT, Cumulocity® etc. )

  • MQTT ISO/IEC 20922:2016 Communication Protocol Support

  • SSL/TLS Support

  • RS232/RS485 MODBUS & Internal Relay & Digital Input

  • Internal Li-Ion Battery

  • Easy Configuration Over Network & USB

  • Customizable Software According to Project Requirements

  • Source Code & Software Development Kit for System Integrators

TECHNICAL SPECIFICATIONS

PROCESSOR

ARM Cortex 32 Bit 204 MHz CPU

COMMUNICATION

Ethernet 10/100 Mbps
Entegre TCP/IP ( UDP,ICMP, FTP, NTP, Ping ) Software Cluster

MQTT, SSL/TLS Protocol Support
Internal GSM/GPRS 2G Modem*

Internal Wi-Fi IEEE 802.11 b/g/n / Bluetooth BLE 4.2 Modem*


RS232

RS485

USB 2.0 VCOM CDC

POSITIONING

99 Channel GPS/GNSS Receiver Module

Internal LNA and Active GPS Receiver Antenna

Assisted GPS and LBS (Located-Based Service) Support

Cold Start <35 sn.    Hot Start <1 sn.

MEMORY

8GB uSD

128KB FRAM

1MB Flash

512KB EEPROM

INPUT/OUTPUT

4x Digital Inputs (Optically-Isolated)

2x Analog Inputs (4-20mA / 0-10 V)


6x Digital Outputs (Open Collector)

2x Relay Outputs

ADDITIONAL SPECIFICATIONS

Online & Offline Operation Mode
Battery Backup Internal Real Time Clock (RTC)

Internal Re-Chargeable  Li-Ion Battery*
Buzzer Audio Alert*

2 LED Indicators*

POWER

8-36V DC 1.5W Max.

ENVIRONMENTAL CONDITIONS

-40°C … +80°C Industrial Operating Range

-40°C … +85°C Storage Range

INSTALLATION

Fixing Holes

DIN Rail Type Mounting Apparatus

SIZE

134x104x40 mm

WEIGHT

260 gr.


* = Optional
