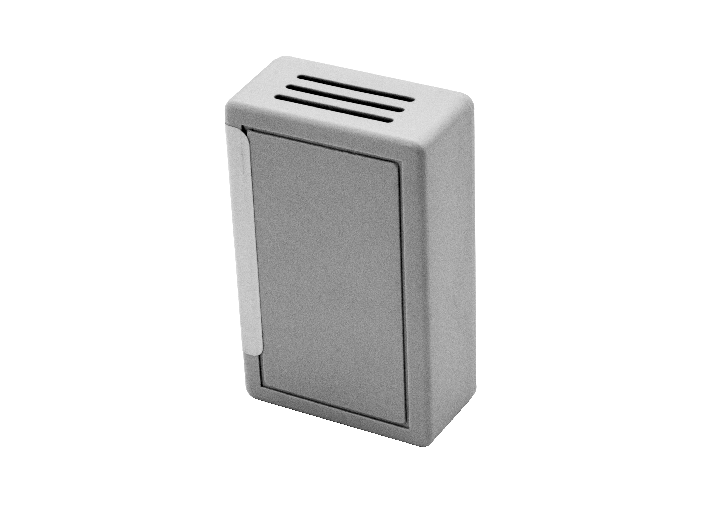

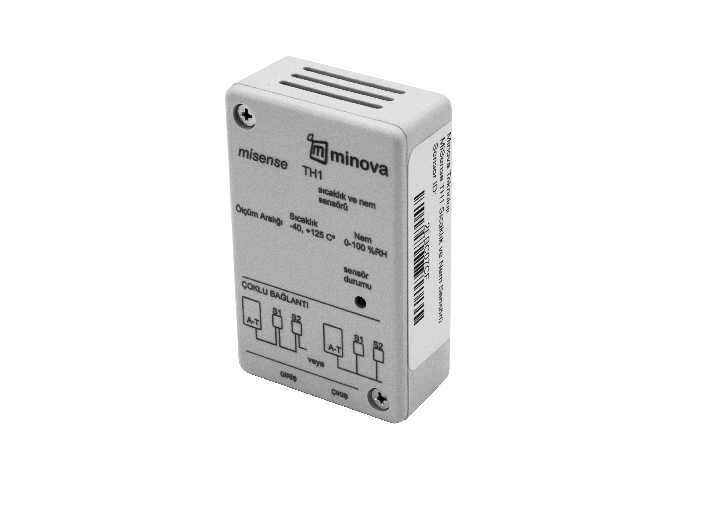

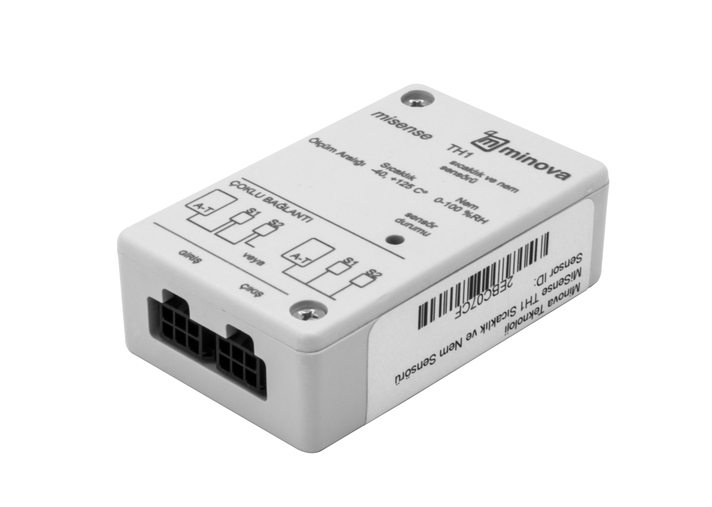

miSense-TH1
Temperature & Humidity Sensor

miSense-TH1 Temperature and Humidity Sensor is a sensor solution readable by single or multiple connections via RS485 multiSensor Bus. Up to 16 sensors can be used, depending on the line length, on single cable.


Optionally, miSense TH1 Temperature-Humidity Sensor can be used with RS232 connection. It can be connected to a computer or different telemetry/measurement/automation devices via RS232 interface.

TECHNICAL SPECIFICATIONS

PROCESSOR

32-bit ARM Cortex CPU

COMMUNICATION

RS232 Port
RS485 Port

MEASUREMENT RANGE

-40 °C … +125 °C (Temperature)
0 - 100 %RH (Humidity)

INPUT/OUTPUT

2x Digital Input

2x Analogue Input

ADDITIONAL SPECIFICATIONS

LED Status Indicator

Self Calibration

POWER

5V DC Operating Voltage

WEIGHT

35 gr.

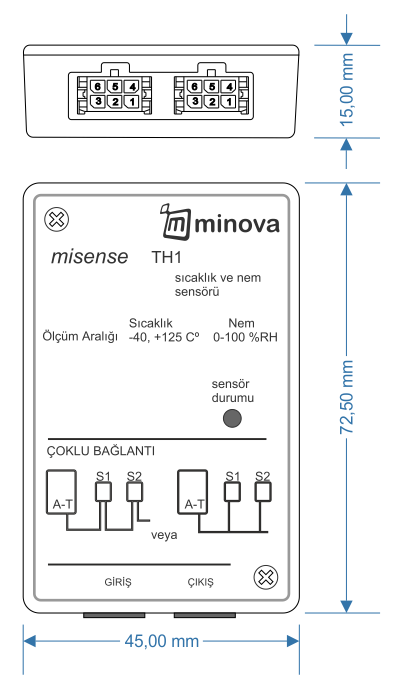

MECHANICAL SPECIFICATIONS
