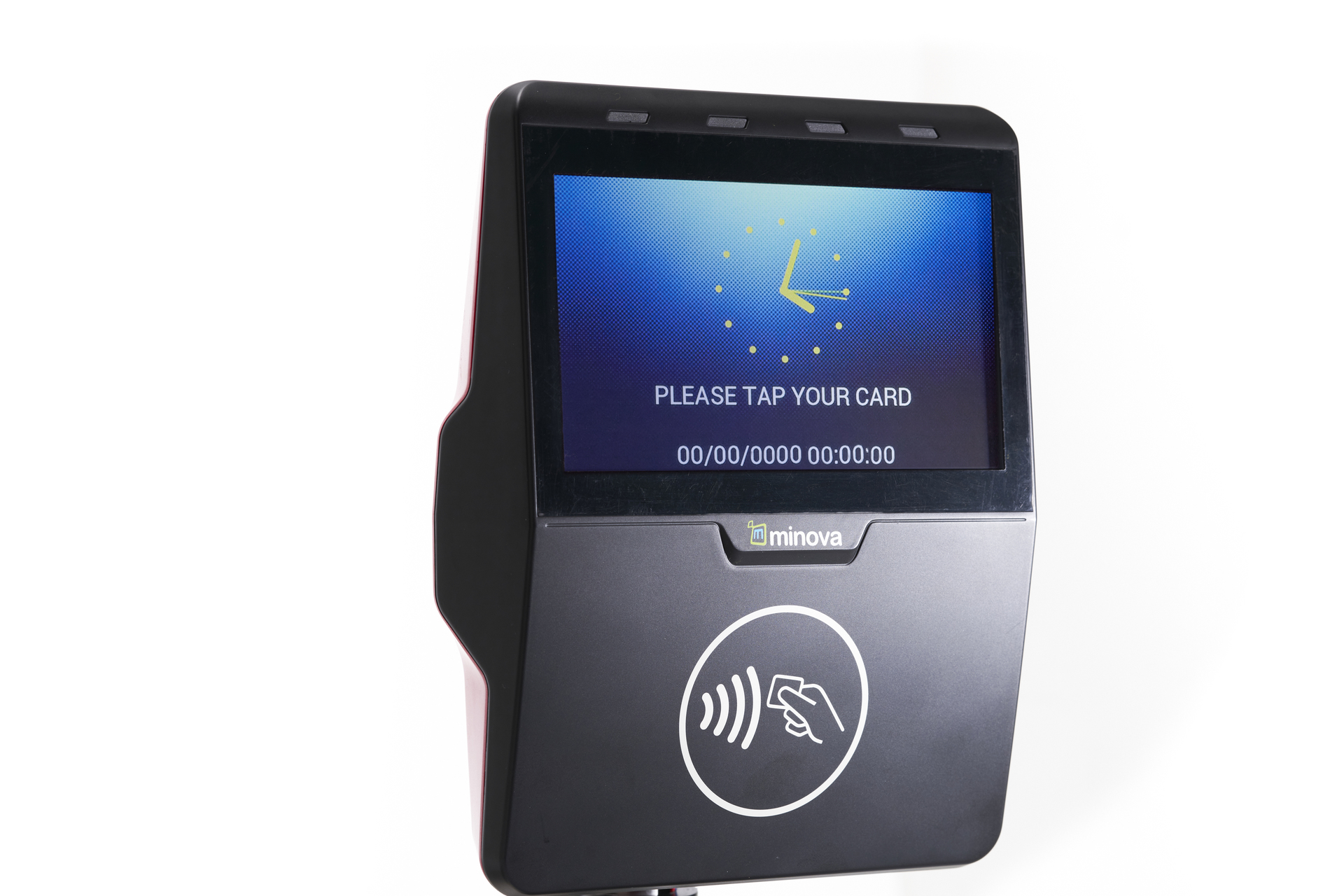

V900 series terminal family is a validator device for Closed Circuit & Electronic Payment and Fare Collection Systems. The terminal features a powerful Dual-Core processor, large memory, increased security (MQTT, SSL) and rich communication capabilities. 7-inch screen is supported as touch resistive or capacitive.

V900 is a fare collection validator that can meet the smart city requirements at the maximum level. The Internal GNSS/GPS receiver offers communication capabilities such as Ethernet/2G/3G/LTE/Wi-Fi/Bluetooth technologies. All process records are forwarded to the server online as they are backed up on the terminal. The process data is stored in memory with 16 GB SD & NV-RAM.

The validator can work with ISO14443 A/B contactless cards, re-chargeable smart cards (MIFARE® 1K, Plus, DESFire) and disposable type contactless tickets (Ultralight). Terminal also supports next-gen payment technologies (QR Code, NFC, Bluetooth). With EMV Level-

1 compatibility, V900 is a world-standard mass transit payment terminal.

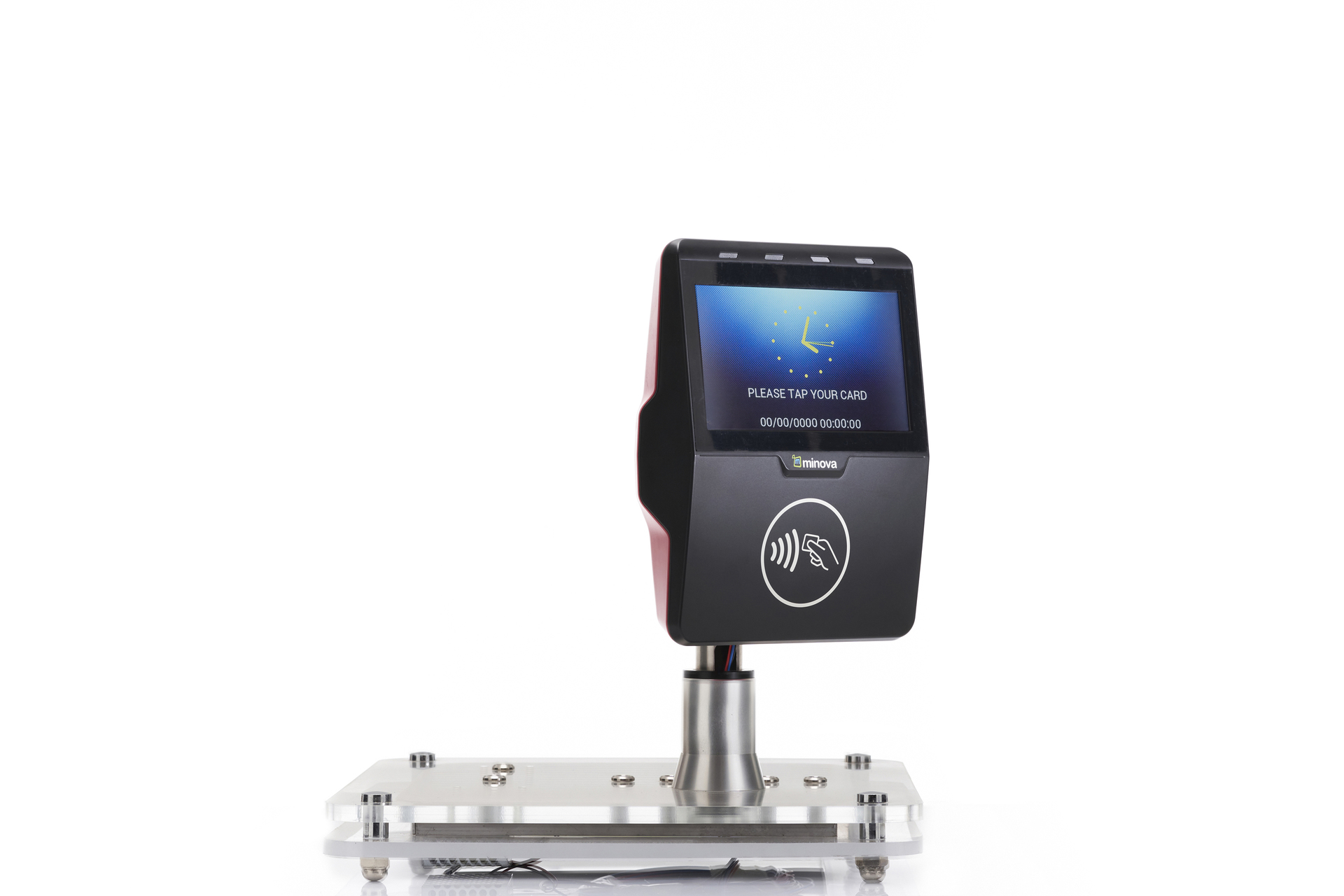

V900 can be used on the vehicle or on the turnstile. Required input/output ports to control turnstile systems are available. Provides communication with Ethernet at fixed points and over 2G/3G/LTE GSM/GPRS in the vehicle. In-vehicle passenger information and announcement systems can be integrated directly into the V900.

Two types of terminals are produced as V900 and V900L for the V900 family. V900L is a lower cost terminal compared to V900.

V900 family terminals are also provided as OEM module for system integrators.

Specifications

• 13.56 MHz ISO11443 A/B & MIFARE®/RFID Reader

• 7” Resistive/Capacitive Display

• Smart Vehicle-ID Chip

• 16GB microSD Memory & NV-RAM Memory & 128 MB SDRAM

• Ethernet and GPRS/2G/3G/LTE & Wi-Fi & Bluetooth Communication

• RS232/RS485 & Digital Input/Output

• USB 2.0 Host

• Linux Operating System or RTOS (Only V900L model)

• Source Code and Software Development Kit for System Integrators
