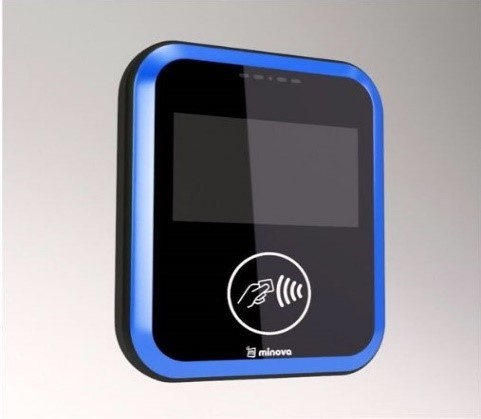

MCR08-N
Contactless Payment & Access Control

MCR08-N is a multi-purpose, programmable RFID & Communication terminal usable in Payment Systems, Access/Time Control, Telemetry & IoT, Automation, etc. It supports rich connectivity technologies such as GPRS/NB-IoT/Wi-Fi/Bluetooth thanks to its high-performance processor & memory as well as Ethernet and miniPCIe expansion slots compared to other MCR08 series.


Specifications:

    • 4.3” TFT Capacitive/Resistive Touchscreen

    • 13.56 MHz Contactless MIFARE®/NFC/RFID Reader

    • Ethernet and GPRS/2G/3G/LTE or Wi-Fi & Bluetooth Communication

    • PoE *(Requires Additional Hardware)

    • Online/Offline Operation

    • Easy Configuration Over Network & USB

    • Internal Relay & Digital Input

    • Source Code for System Integrators & Software Development Kit

    TECHNICAL SPECIFICATIONS

    READ-WRITE

    ISO14443A/B

    MIFARE® Classic, DESFire/Plus and Ultralight Contactless Card Read/Write

    ISO/IEC 15693*

    ISO/IEC 18000* (ICODE®)

    50Ω External RFID Antenna Output Port

    DISPLAY

    4.3" TFT Capacitive/Resistive Touchscreen LCD Display

    PROCESSOR

    600 MHz 32-bit ARM High Performance CPU

    MEMORY

    32 MB SDRAM

    32 MB Flash

    8 GB Internal microSD

    COMMUNICATION

    Ethernet 10/100 Mbps

    Integrated TCP/IP ( UDP,ICMP, FTP, NTP, Ping ) Software Cluster

    Internal GSM/GPRS 2G/3G/LTE/NB-IoT miniPCIe Modem*

    Internal Wi-Fi IEEE 802.11 b/g/n / Bluetooth BLE 4.2 miniPCIe Modem*

    RS232 Port (300-115200 Baud)
    RS485 Port (300-115200 Baud)

    USB 2.0 (VCOM, HID)

    CAN Bus*

    INPUT/OUTPUT

    2x Relay Outputs (1.5A Dry Contact)
    4x Optically-Isolated Digital Inputs

    ADDITIONAL SPECIFICATIONS

    Internal SAM Slot*

    Battery Backup Internal Real Time Clock (RTC)

    Real Sound Output (Internal Amplifier and Loudspeaker)

    4 LED Indicators

    Wall/Vehicle Installation Kit

    POWER

    6-60V DC Operating Voltage
    PoE IEEE 802.3af

    ENVIRONMENTAL CONDITIONS

    -20°C … +70°C Industrial Operating Range

    -30°C … +80°C Storage Range


    * = Optional
