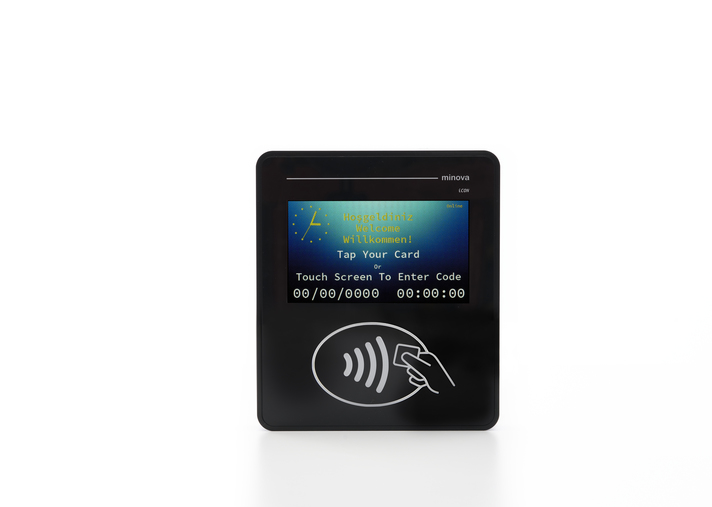

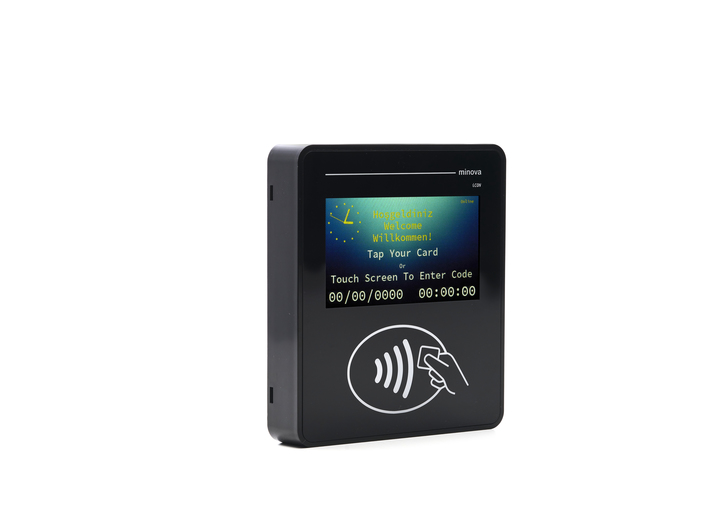

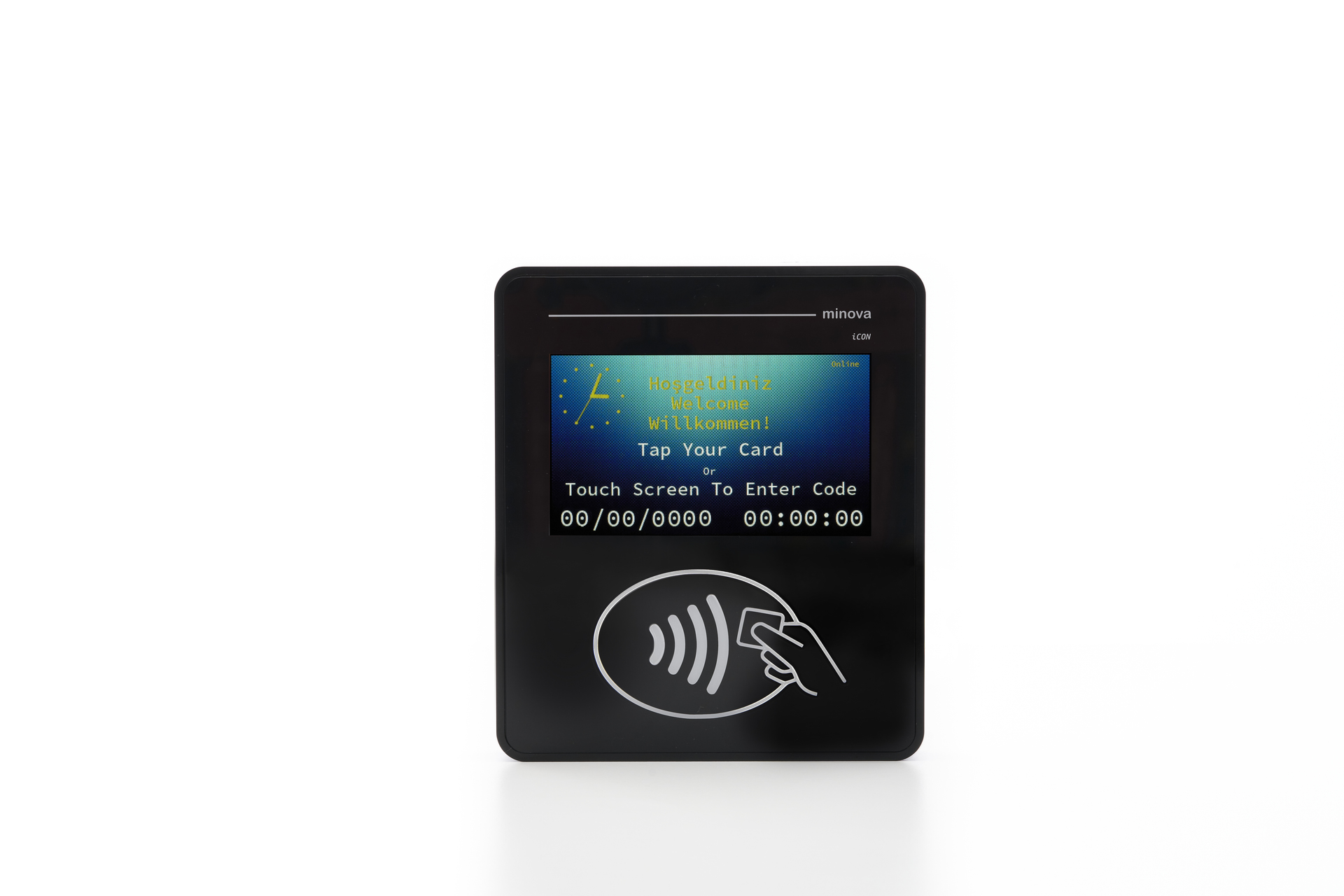

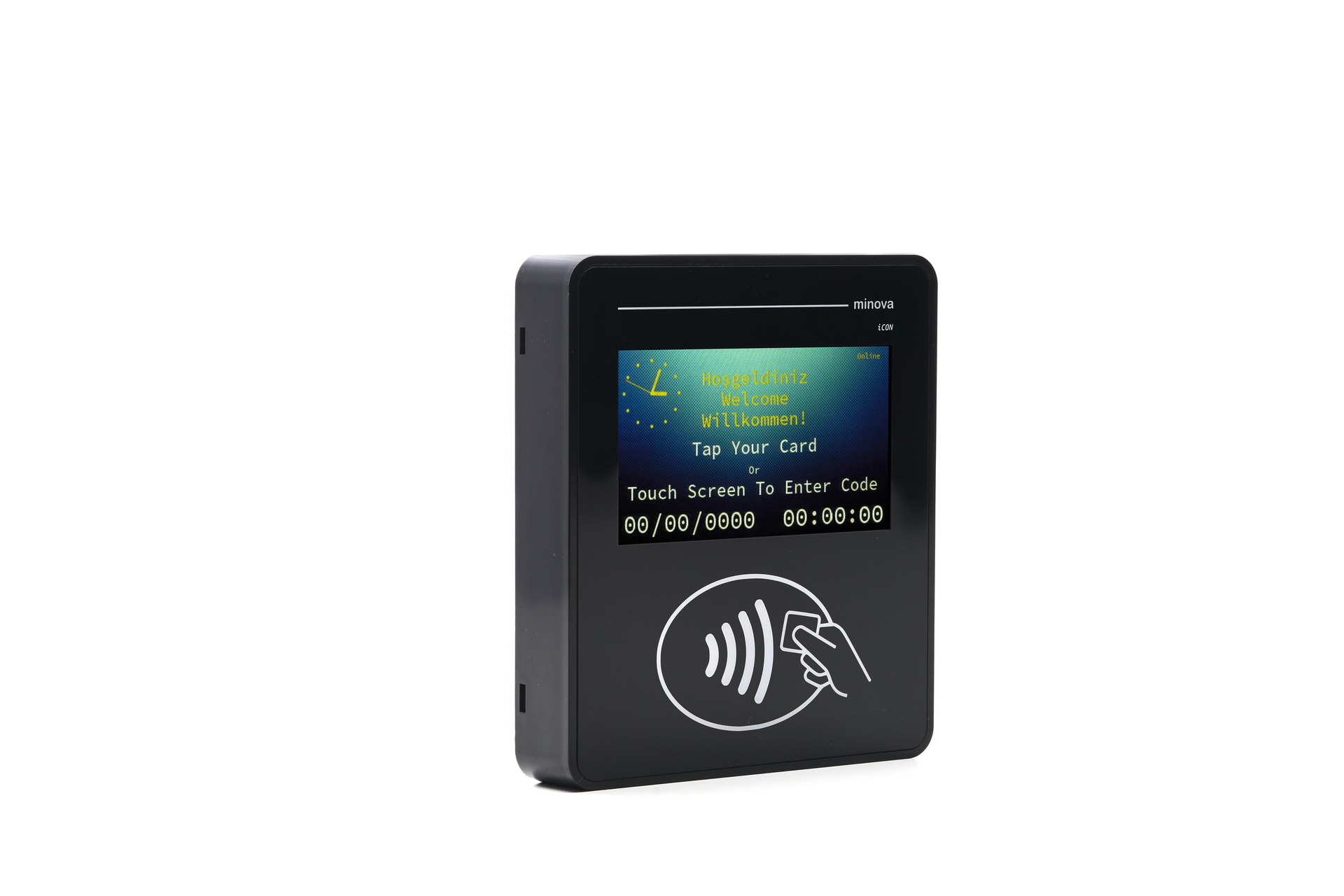

MCR08-G
RFID Reader & Access Control Terminal

MCR08-G is a multi-purpose, programmable RFID & Communication terminal usable in Access Control, Closed-Circuit Payment Systems, Telemetry & IoT, Automation, etc. Compared to MCR08 series, it supports rich communication technologies such as GPRS/NB-IoT/Wi-Fi/Bluetooth thanks to Ethernet and Mini PCIe expansion slots.


Terminal is also provided as OEM module for system integrators.


MCR08-G-OEM





Specifications:

  • 4.3" TFT Capacitive/Resistive Touchscreen

  • 13.56 MHz Contactless MIFARE®/NFC/RFID Reader

  • Ethernet and GPRS/2G/3G/LTE or Wi-Fi & Bluetooth Communication

  • PoE *(Requires Additional Hardware)

  • Online/Offline Operation

  • Easy Configuration & Control Over Network

  • Internal Relay & Digital Input

TECHNICAL SPECIFICATIONS

READ-WRITE

ISO14443A/B

MIFARE® Classic, DESFire/Plus and Ultralight Contactless Card Read/Write

ISO/IEC 15693*

ISO/IEC 18000* (ICODE®)

50Ω External RFID Antenna Output Port

DISPLAY

4.3" TFT Capacitive/Resistive Touchscreen LCD Display

PROCESSOR

32-bit ARM Cortex 200 MHz High Performance CPU

MEMORY

8 GB Internal microSD

1 MB Internal NOR Flash Memory

256 KB FRAM*

COMMUNICATION

Ethernet 10/100 Mbps

Integrated TCP/IP ( UDP,ICMP, FTP, NTP, Ping ) Software Cluster

Internal GSM/GPRS 2G/3G/LTE/NB-IoT miniPCIe Modem*

Internal Wi-Fi IEEE 802.11 b/g/n / Bluetooth BLE 4.2 miniPCIe Modem*

RS232 Port (300-115200 Baud)

RS485 Port (300-115200 Baud)

USB 2.0 (VCOM, HID)

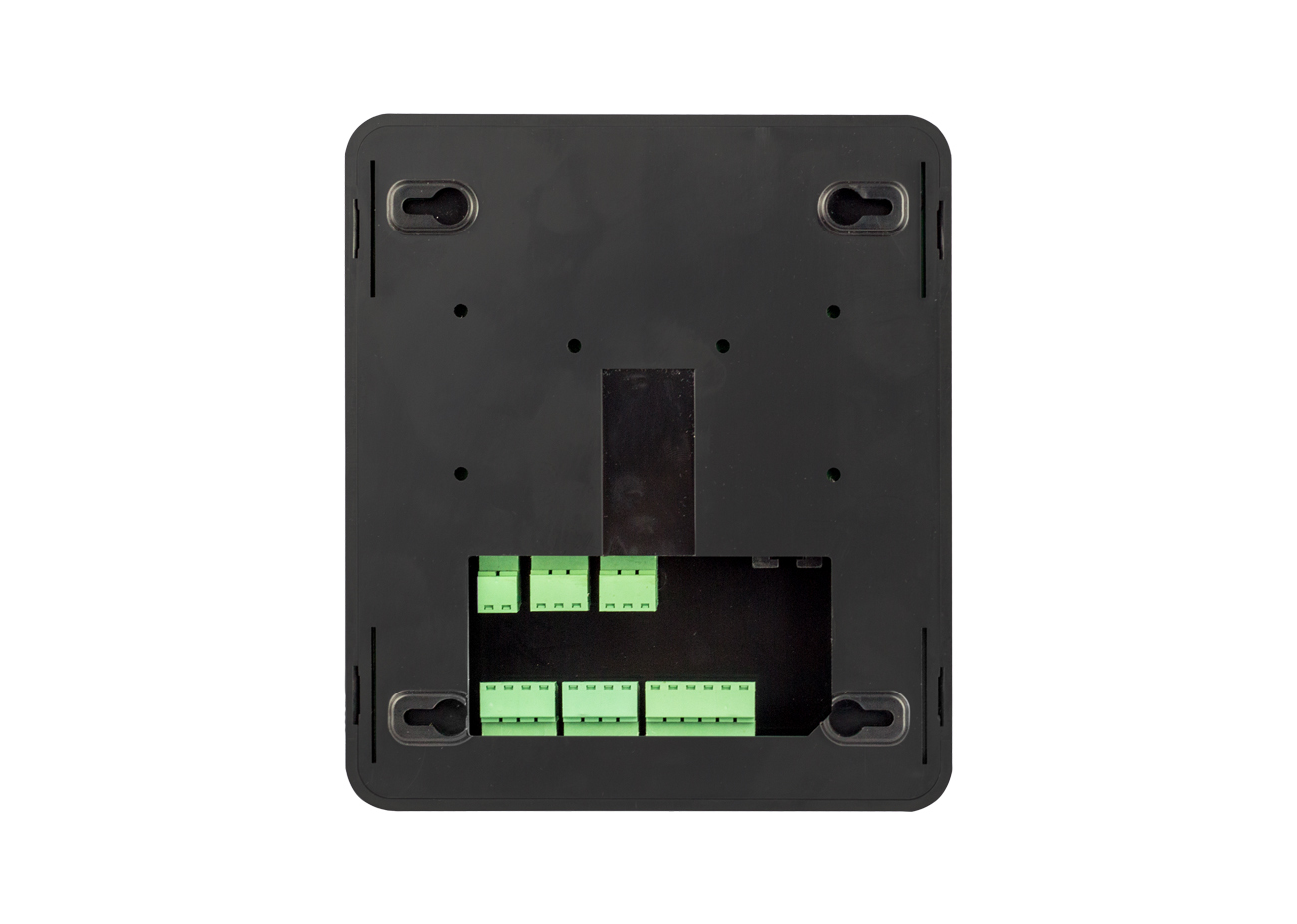

INPUT/OUTPUT

2x Relay Outputs (1.5A Dry Contact)

4x Optically-Isolated Digital Inputs

ADDITIONAL SPECIFICATIONS

Offline Operation Mode

Battery Backup Internal Real Time Clock (RTC)

Real Sound Output (Internal Amplifier and Loudspeaker)

4 LED Indicators

POWER

6-35V DC Operating Voltage

PoE (Power Over Ethernet, with PoE Injector Hardware)*

ENVIRONMENTAL CONDITIONS

-20°C … +70°C Industrial Operating Range

-30°C … +80°C Storage Range

SIZE

150 x 132 x 30 mm


* = Optional
