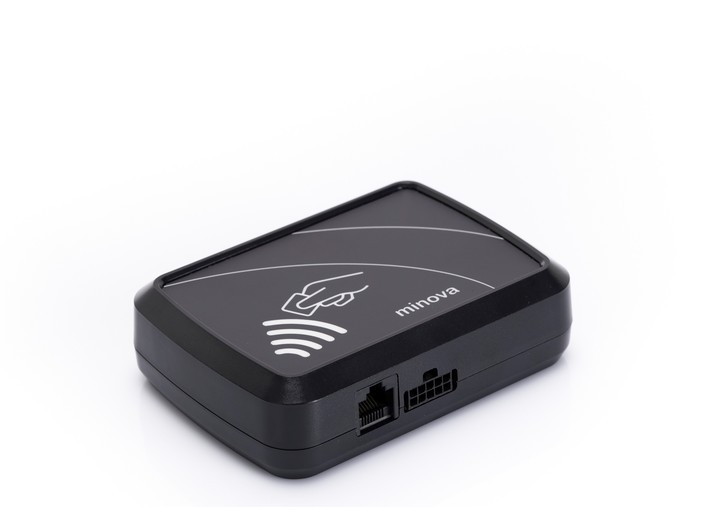

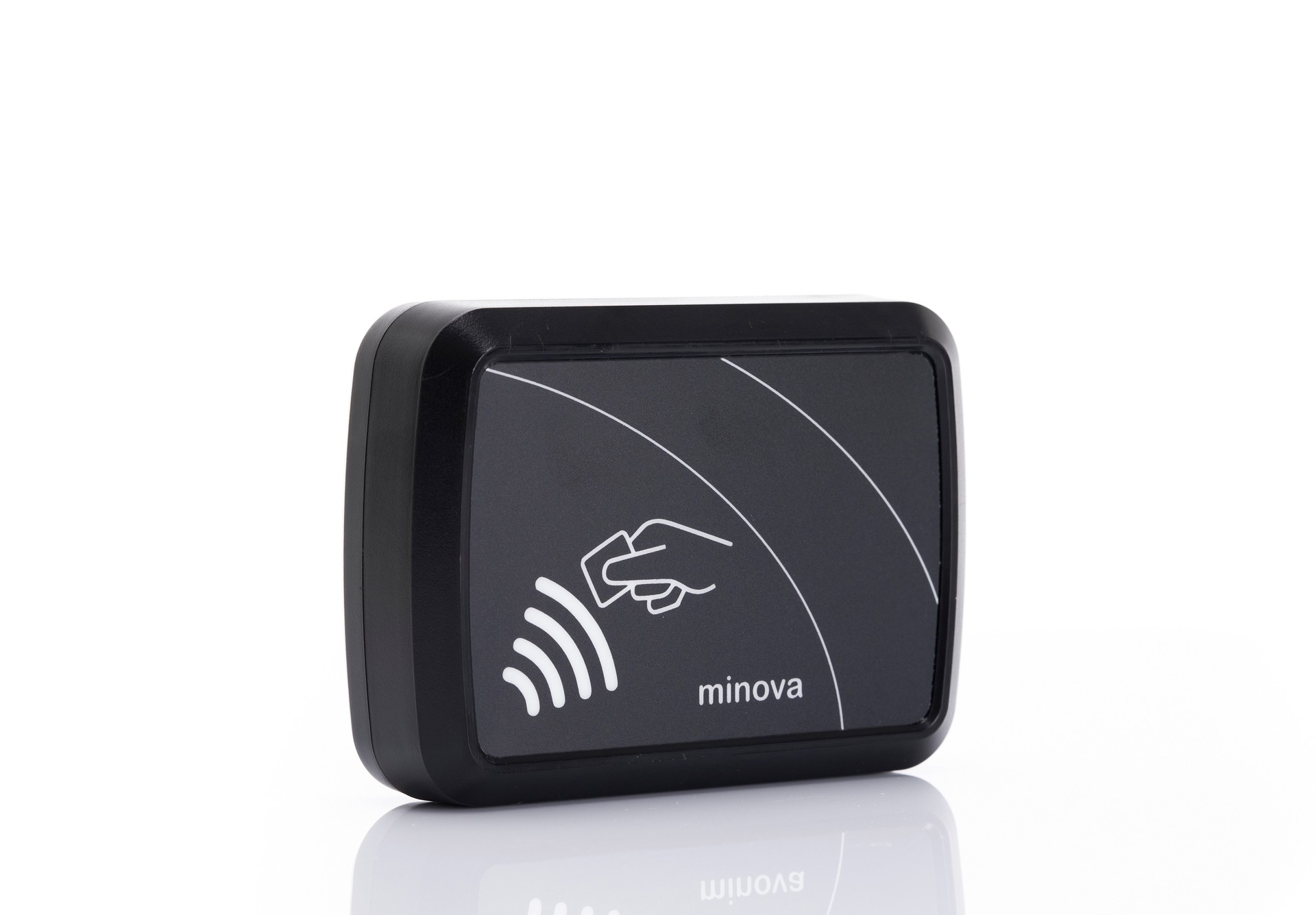

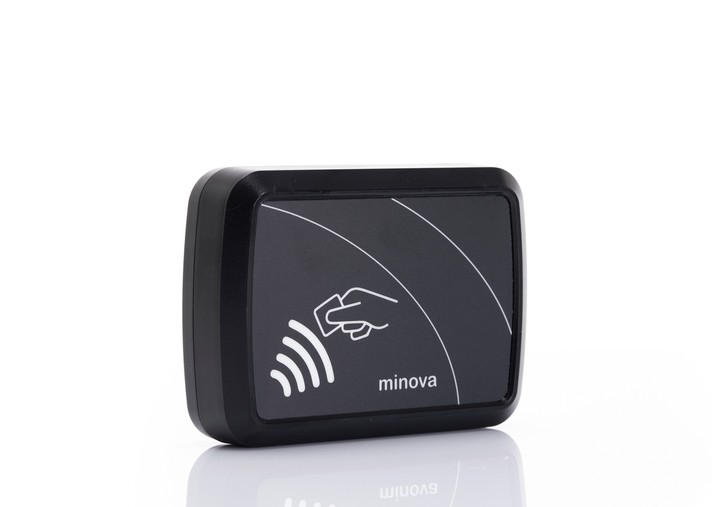

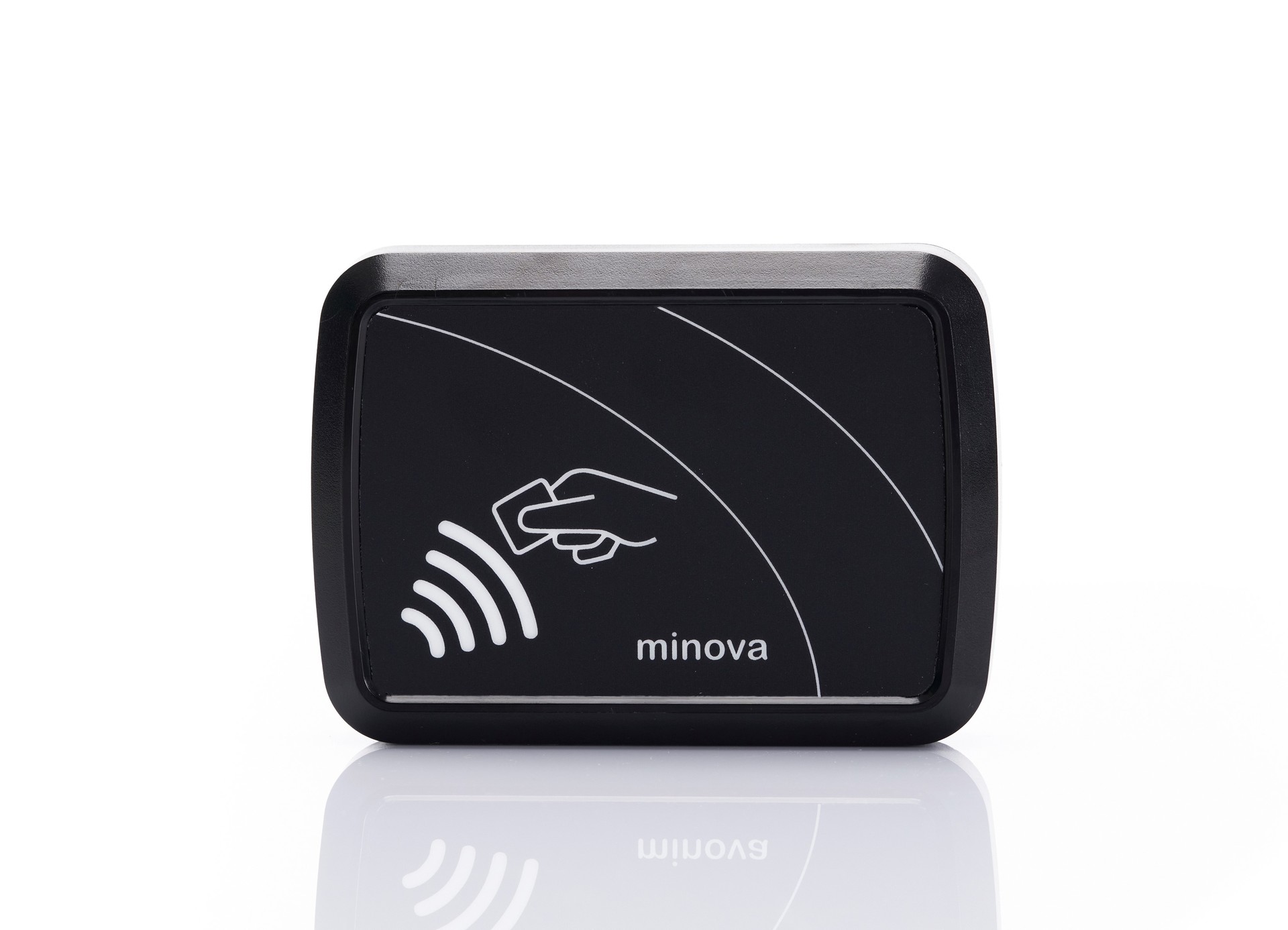

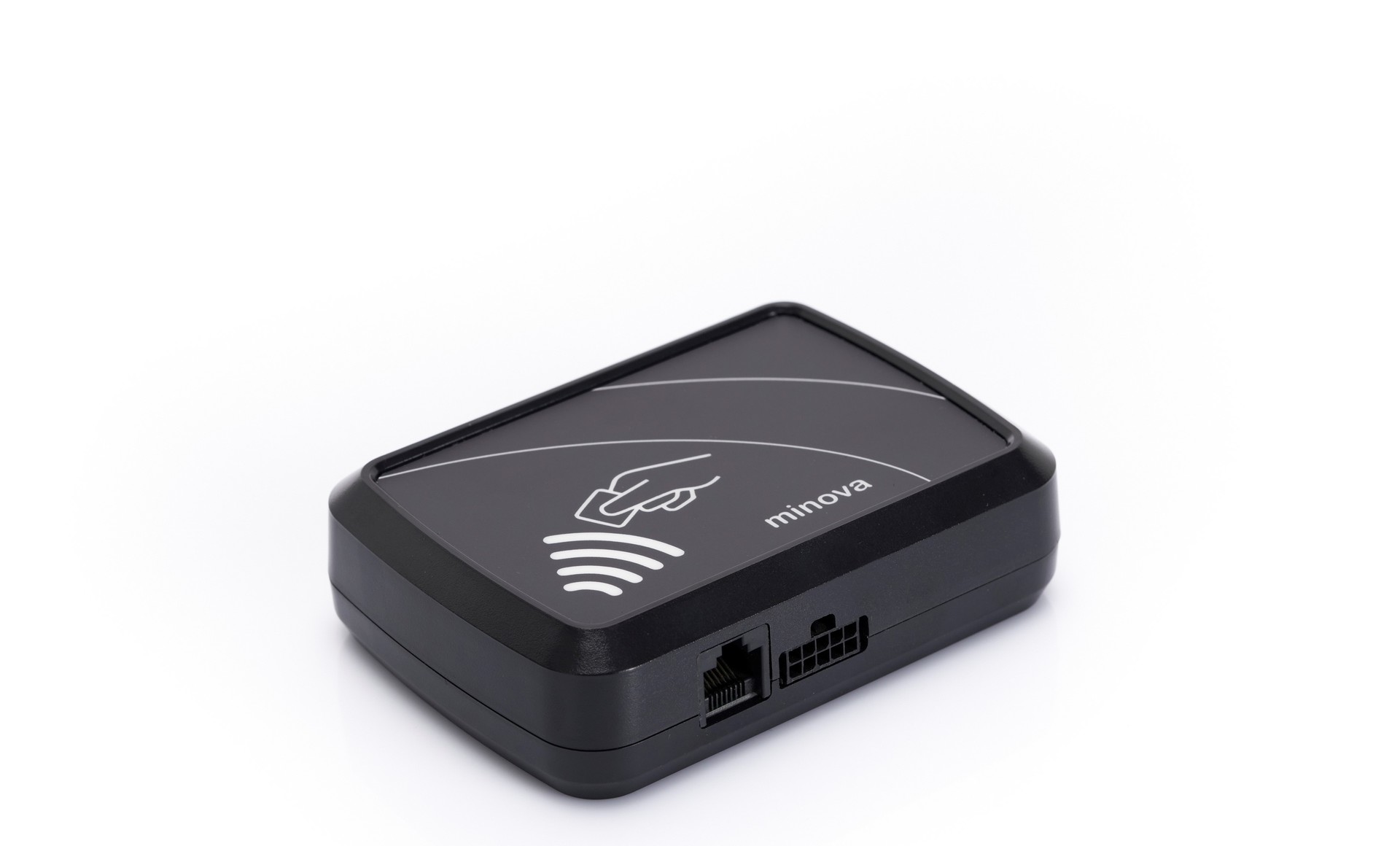

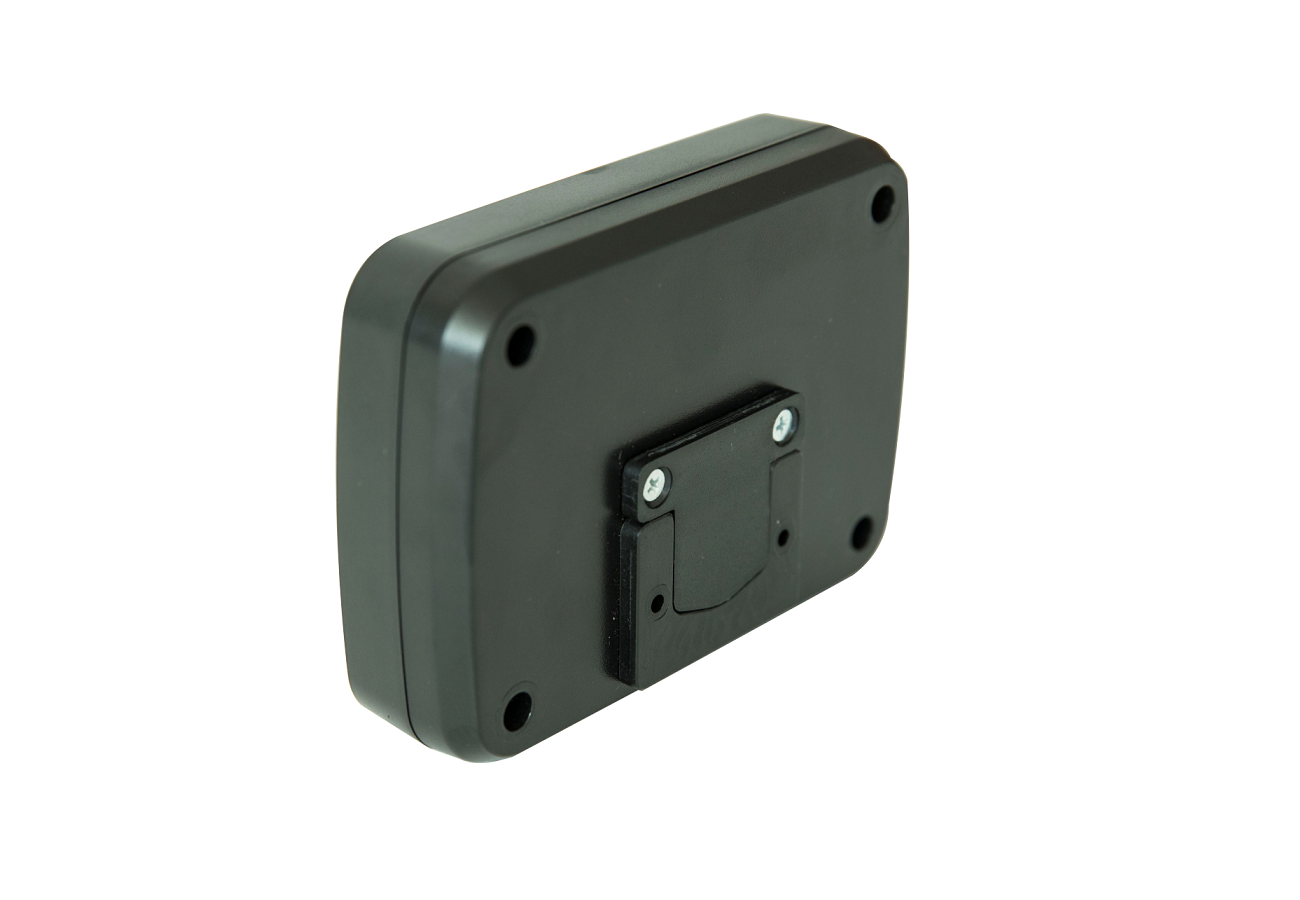

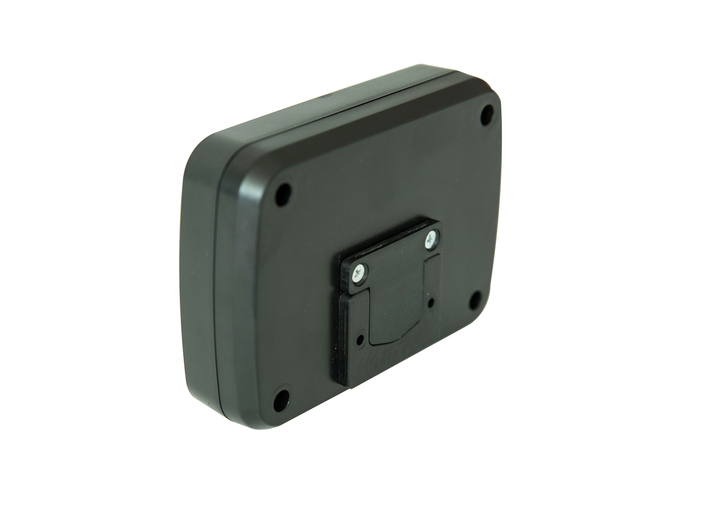

MCR05
Online Access Control & Card Programming Terminal

MCR05 is a multi-purpose, programmable, fully Online, 13.56 MHz RFID Card Reader terminal usable in Access Control, PACS applications. Enables connection to a remote server by using standard Socket (TCP, UDP) or Web (HTTP, ASP, PHP, etc.) through internal TCP/IP software cluster. Server can control units of terminal such as LCD Display & Buzzer and Relay


The terminal also supports read/write and programming of cards with MIFARE® and ISO14443A standards in PC (Windows/Linux/Mac) environment with USB, RS232 or RS485 communication options.


Terminal is also provided as OEM module for system integrators.


MCR05-OEM






Specifications:

  • 13.56 MHz Contactless MIFARE/RFID Reader (4-Byte, 7- Byte UID Support)

  • 3.3” 128x64 Pixel Blue-White Monochrome LCD Display

  • Ethernet

  • PoE *(Requires Additional Hardware)

  • Online Operation

  • Easy Configuration & Control Over Network

  • Internal Relay & Digital Input

  • Card Reading/Programming Over USB/RS232/RS485

TECHNICAL SPECIFICATIONS

READ-WRITE

MIFARE® ISO14443A

10cm Contactless Card Reading Range

Classic, Plus and Ultralight Contactless Card Read/Write

DISPLAY

3.3" Graphic LCD, 128 x 64 Pixel Resolution
LED Backlight Blue-Write Display

PROCESSOR

32-bit ARM Cortex CPU

MEMORY

1MB Internal Flash E2PROM

COMMUNICATION

Ethernet 10Base-T
Globally Unique MAC Address
Integrated TCP/IP Stack
TCP/IP Client-Server Roles
UDP Support
DHCP/Static IP Operation
ICMP Ping Support
Remote Configuration with miFinder Software over Local Area Network


USB 2.0
RS232 Port (300-115200 Baud)*
RS485 Port (300-115200 Baud)*

INPUT/OUTPUT

2x Relay Outputs (1.5A Dry Contact)

4x Optically-Isolated Digital Inputs

ADDITIONAL SPECIFICATIONS

Online Operation Mode

Battery Backup Internal Real Time Clock (RTC)

Buzzer Audio Alert

POWER

6-35V DC Operating Voltage
PoE (Power Over Ethernet) Feature (with PoE Injector Hardware)*

ENVIRONMENTAL CONDITIONS

-30 °C … +75 °C Industrial Operating Range

-40 °C … +85 °C Storage Range

SIZE

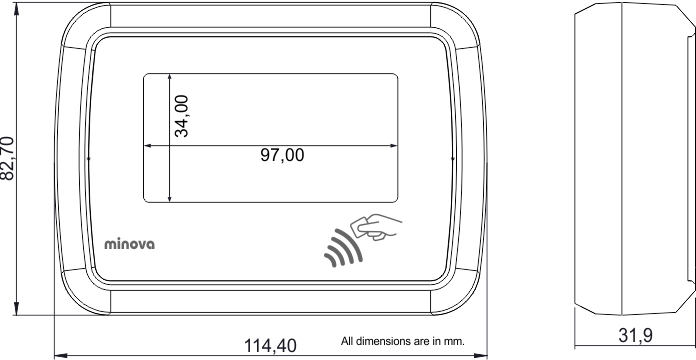

115 x 83 x 32 mm


* = Optional


MECHANICAL SPECIFICATIONS
