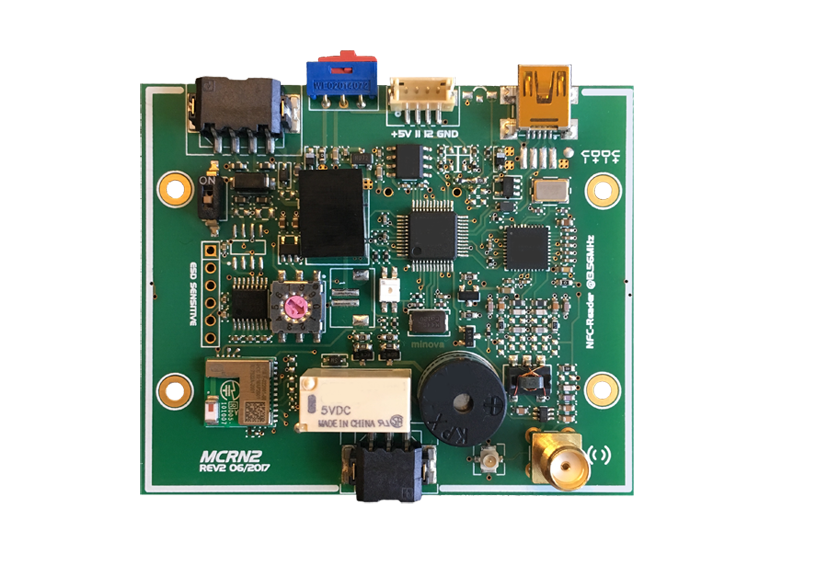

MCRN2 OEM NFC READER

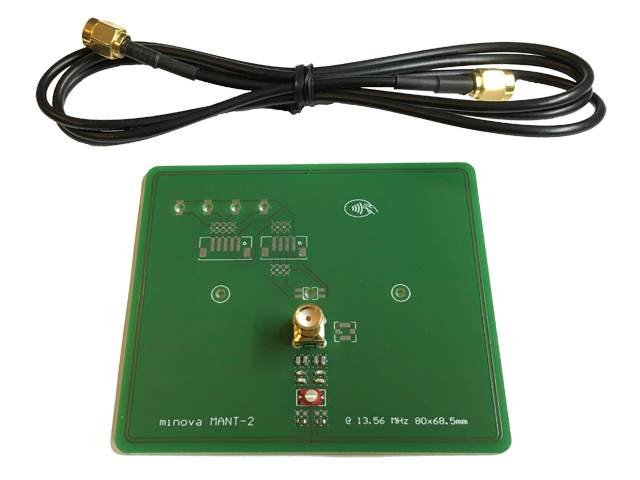

MCRN2 is an advanced NFC reader that supports various interfaces such as Bluetooth® Smart BLE 4.1, USB and RS232 / RS485. Can read up to 80 mm distance through its powerful internal antenna. A 50 Ohm external antenna can be also connected to the SMA or U.FL connectors via coaxial cable.


iOS/Android Applications and Windows configuration software are included with the SDK service.



Specifications:

  • 13.56 MHz Contactless MIFARE®/NFC/RFID Reader

  • Bluetooth® Smart BLE 4.1 / USB 2.0 / RS232-RS485 Interfaces

  • Internal/External Antenna

  • iOS & Android Mobile Applications

TECHNICAL SPECIFICATIONS

OKUMA-YAZMA

ISO14443A/B

MIFARE® Classic, DESFire/Plus and Ultralight Contactless Card Read/Write

ISO/IEC 15693

ICODE®

NTAG®



50Ω External RFID Antenna Output Port

MEMORY

8 MBit External Flash

COMMUNICATION

Bluetooth® Smart Interface (BLE 4.1)

USB 2.0 Full-Speed interface

RS232/RS485/TTL up to 230K Baud

INPUT/OUTPUT

1x Relay Output (2A)
2x I/O

ADDITIONAL SPECIFICATIONS

Real Time Clock (RTC)*

Buzzer Audio Alert
3-Color LED indicator

POWER

8-28V DC Operating Voltage

5V DC Operating Voltage (over USB)*

ENVIRONMENTAL CONDITIONS

-30°C … +85°C Industrial Operating Range


* =Optional

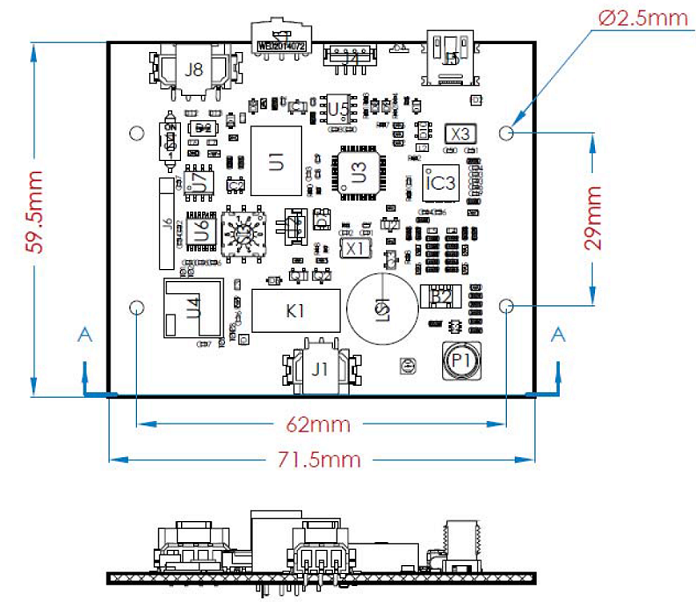

MECHANICAL SPECIFICATIONS
