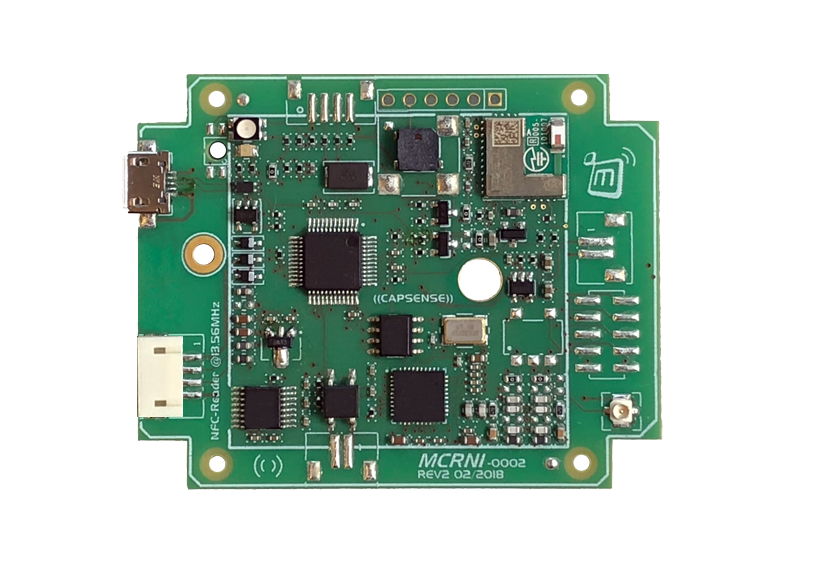

MCRN1 OEM NFC READER

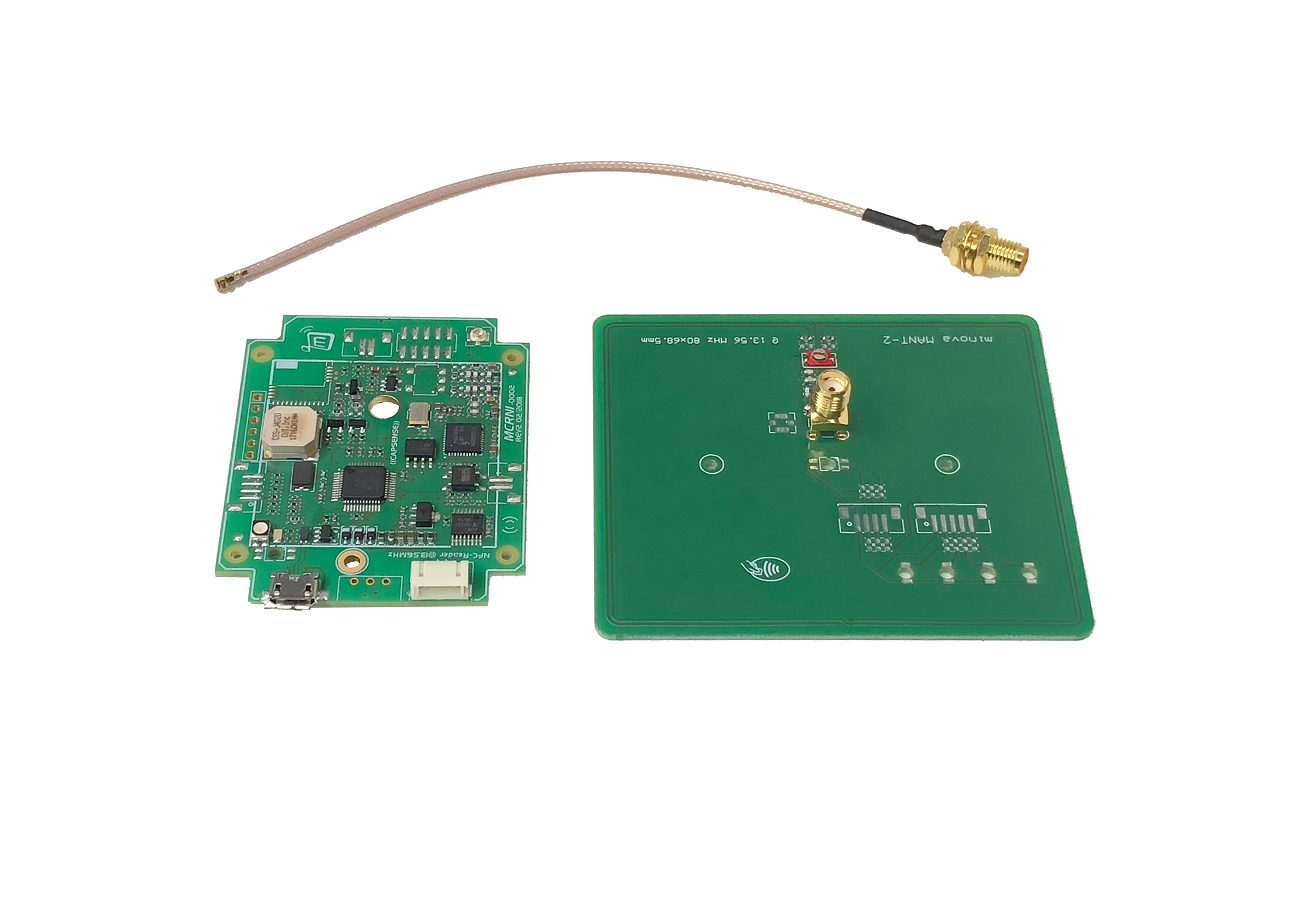

MCRN1 is an advanced NFC reader that supports various interfaces such as Bluetooth® Smart BLE 4.1, USB and RS232. Can read up to 80 mm distance through its powerful internal antenna. A 50 Ohm external antenna can be also connected to the SMA or U.FL connectors via coaxial cable.


iOS/Android Applications and Windows configuration software are included with the SDK service.



Specifications:

  • 13.56 MHz Contactless MIFARE®/NFC/RFID Reader

  • Bluetooth® Smart BLE 4.1 / USB 2.0 / RS232 Interfaces

  • Internal/External Antenna

  • iOS & Android Mobile Applications

TECHNICAL SPECIFICATIONS

OKUMA-YAZMA

ISO14443A/B

MIFARE® Classic, DESFire/Plus ve Ultralight Contactless Card Read/Write

ISO/IEC 15693

ICODE®

NTAG®

EMV Credit Cards

50Ω External RFID Antenna Output Port

MEMORY

8 MBit External Flash

COMMUNICATION

Bluetooth® Smart Interface (BLE 4.1)

USB 2.0 Full-Speed interface

RS232/TTL up to 230K Baud

INPUT/OUTPUT

1x Relay Output (1A)
2x Optically-Isolated Digital Inputs

ADDITIONAL SPECIFICATIONS

Buzzer Audio Alert
3-Color LED indicator

POWER

5V DC Operating Voltage (over USB)

ENVIRONMENTAL CONDITIONS

-30°C … +85°C Industrial Operating Range

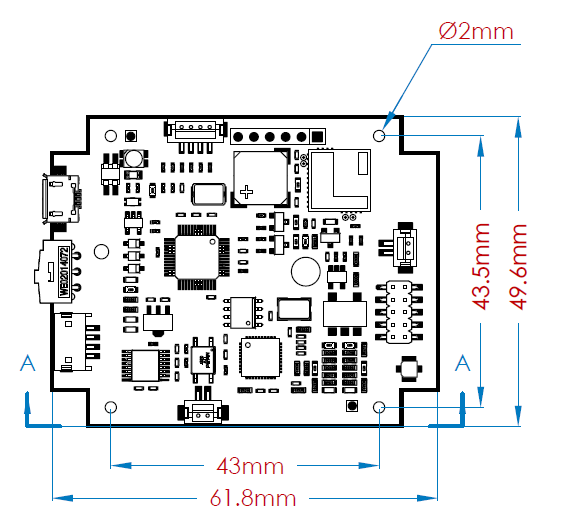

MECHANICAL SPECIFICATIONS
