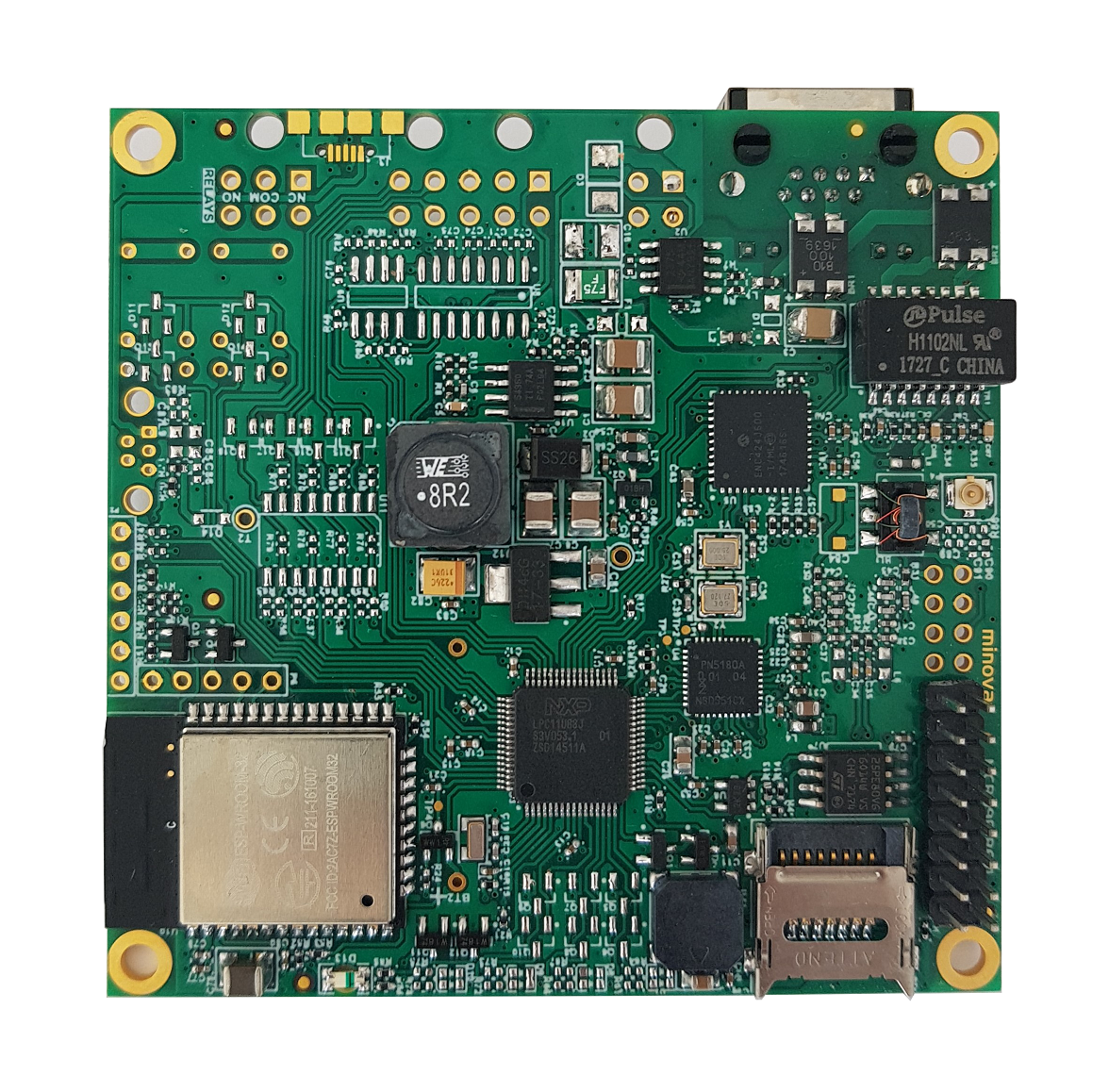

MCR09-P OEM
RFID & IoT Terminal

MCR09-P is a multi-purpose, programmable OEM 13.56 MHz RFID & IoT terminal usable in IoT and RFID & Automation etc. applications. Contains various communication technologies such as PoE Ethernet/Wi-Fi/Bluetooth. Supports RFID Antenna output up to 8 ports for Object Tracking, Factory Automation and Inventory Systems.


Specifications:

  • 13.56 MHz NFC/RFID Reader and RFID Antenna Output up to 8 Ports

  • PoE and/or Wi-Fi & Bluetooth Support

  • RS232/RS485 ModBus

  • Easy Configuration & Control Over Network

  • Optional TFT Display Output Port

  • Source Code for System Integrators & Software Development Kit

TECHNICAL SPECIFICATIONS

READ-WRITE

ISO14443A/B

MIFARE® Classic, DESFire/Plus and Ultralight Contactless Card Read/Write

ISO/IEC 15693*

ISO/IEC 18000* (ICODE®)

50Ω External RFID Antenna Output Port

DISPLAY

4.3" & 7" TFT Capacitive/Resistive Touchscreen LCD Display Expansion Slot

PROCESSOR

32-bit ARM Cortex High Performance CPU

MEMORY

8 GB Internal microSD Memory

1 MB Internal NOR Flash Memory

COMMUNICATION

Ethernet 10/100 Mbps

Integrated TCP/IP ( UDP,ICMP, FTP, NTP, Ping ) Software Cluster

Internal GSM/GPRS 2G/3G/LTE/NB-IoT miniPCIe Modem*

Internal Wi-Fi IEEE 802.11 b/g/n / Bluetooth BLE 4.2 miniPCIe Modem


TTL UART 3.3V*

TTL SPI 3.3V*

RS232 Port (300-115200 Baud)

RS485 Port (300-115200 Baud)

USB 2.0 (VCOM, HID)

INPUT/OUTPUT

2x Relay Outputs (1.5A Dry Contact)

4x Optically-Isolated Digital Inputs

ADDITIONAL SPECIFICATIONS

Online/Offline Operation Mode

Battery Backup Internal Real Time Clock (RTC)

Real Sound Output (Internal Amplifier and Loudspeaker)

2 LED Indicators

Buzzer

8 RFID Antenna Connection Output (with Additional Hardware)*

POWER

6-60V DC Operating Voltage
IEEE 802.3af PoE

ENVIRONMENTAL CONDITIONS

-40°C … +85°C Industrial Operating Range

-40°C … +85°C Storage Range


* = Optional

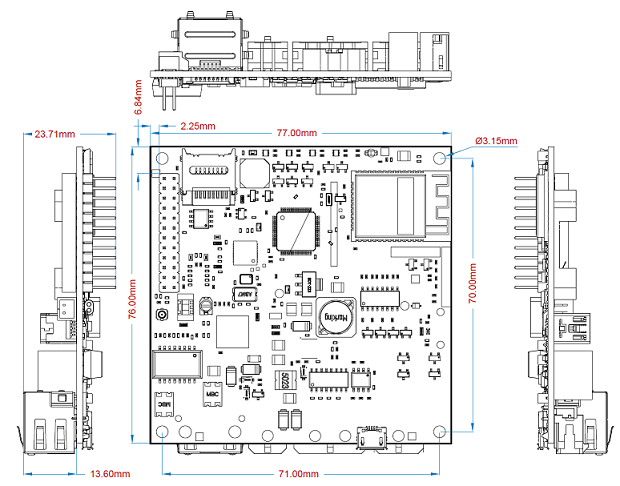

MECHANICAL SPECIFICATIONS
