MCR04 OEM
Online Access Control Terminal

MCR04 is a multi-purpose, programmable, fully Online, 13.56 MHz RFID Card Reader terminal usable in Access Control, PACS applications. Enables connection to a remote server by using standard Socket (TCP, UDP) or Web (HTTP, ASP, PHP, etc.) through internal TCP/IP software cluster. Server can control units of terminal such as LCD Display & Buzzer and Relay.



Specifications:

  • 13.56 MHz Contactless MIFARE/RFID Reader (4-Byte 7- Byte UID Support )

  • 3.3” 128x64 Pixel Blue-White Monochrome LCD Display

  • Ethernet

  • PoE *(Requires Additional Hardware)

  • Online Operation

  • Easy Configuration & Control Over Network

  • Internal Relay & Digital Input

TECHNICAL SPECIFICATIONS

READ-WRITE

MIFARE® ISO14443A
5cm
Contactless Card Reading Range

Classic, Plus and Ultralight Contactless Card Read/Write

DISPLAY

3.3" Graphic LCD, 128 x 64 Pixel Resolution
LED Backlight Blue-Write Display

PROCESSOR

32-bit ARM Cortex CPU

MEMORY

1MB Internal Flash

COMMUNICATION

Ethernet 10Base-T

Globally Unique MAC Address

Integrated TCP/IP Stack

TCP/IP Client-Server Roles

UDP Support

DHCP/Static IP Operation

ICMP Ping Support

Remote Configuration with miFinder Software over Local Area Network

RS232 Port (300-115200 Baud)*

RS485 Port (300-115200 Baud)*

INPUT/OUTPUT

2x Relay Outputs (1.5A Dry Contact)

4x Optically-Isolated Digital Inputs

ADDITIONAL SPECIFICATIONS

Online Operation Mode

Battery Backup Internal Real Time Clock (RTC)

Buzzer Audio Alert

POWER

6-35V DC Operating Voltage
PoE (Power Over Ethernet) Feature (with PoE Injector Hardware)*

ENVIRONMENTAL CONDITIONS

-30 °C … +75 °C Industrial Operating Range

-40 °C … +85 °C Storage Range

SIZE

99 x 65 x 19 mm


* = Optional

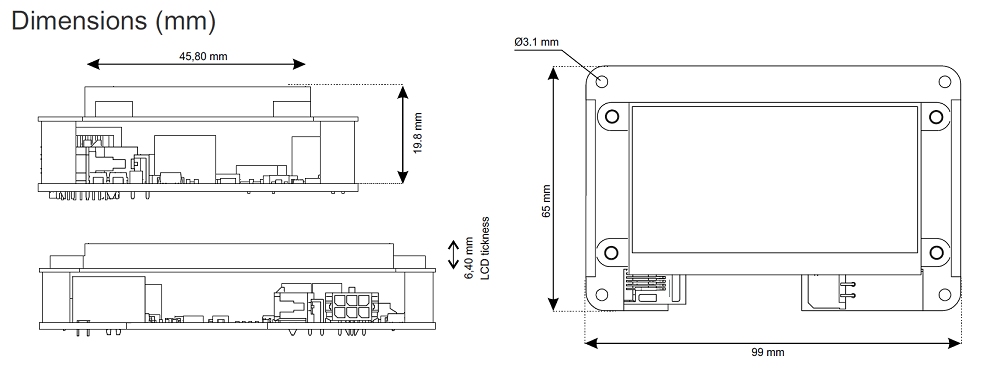

MECHANICAL SPECIFICATIONS
