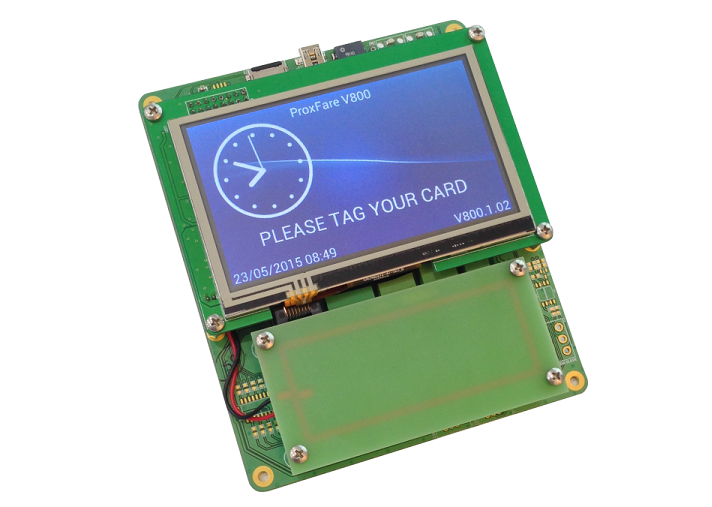

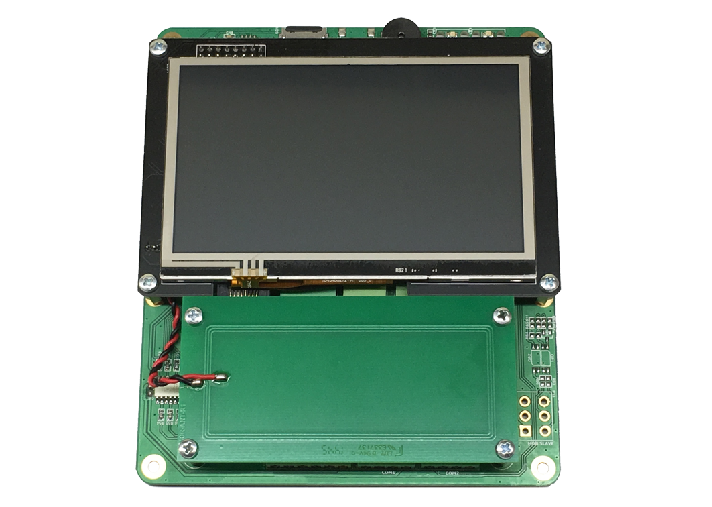

MCR08 OEM
RFID & Access Control Terminal

MCR08 is a multi-purpose, programmable RFID Card Reader & Communication terminal usable in Access Control, Closed Circuit Payment Systems, Telemetry & IoT, Automation, etc.




Specifications:

  • 4.3" TFT Capacitive/Resistive Touchscreen

  • 13.56 MHz Contactless NFC/RFID

  • Ethernet

  • PoE *(Requires Additional Hardware)

  • Internal GSM/GPRS/2G Modem or IEEE 802.11 b/g/n Wi- Fi + Bluetooth 4.2 Communication

  • Online/Offline Operation

  • Easy Configuration & Control Over Network

  • Internal Relay & Digital Input

TECHNICAL SPECIFICATIONS

READ-WRITE

ISO14443A/B

MIFARE® Classic, DESFire/Plus and Ultralight Contactless Card Read/Write

ISO/IEC 15693*

ISO/IEC 18000* (ICODE®)

50Ω External RFID Antenna Output Port

DISPLAY

4.3" TFT Capacitive/Resistive Touchscreen LCD Display

PROCESSOR

32-bit ARM Cortex 200 MHz High Performance CPU

MEMORY

8 GB Internal microSD Memory
1 MB Internal NOR Flash Memory
256 KB FRAM*

COMMUNICATION

Ethernet 10 Mbps

Integrated TCP/IP ( UDP,ICMP, FTP, NTP, Ping ) Software Cluster

RS232 Port (300-115200 Baud)
RS485 Port (300-115200 Baud)

USB 2.0 (VCOM, HID)

INPUT/OUTPUT

2x Relay Outputs (1.5A Dry Contact)

4x Optically-Isolated Digital Inputs

ADDITIONAL SPECIFICATIONS

Offline Operation Mode

Battery Backup Internal Real Time Clock (RTC)

Real Sound Output (Internal Amplifier and Loudspeaker)

4 LED Indicators

POWER

6-35V DC Operating Voltage
PoE (Power Over Ethernet, with PoE Injector Hardware)*

ENVIRONMENTAL CONDITIONS

-20°C … +70°C Industrial Operating Range

-30°C … +80°C Storage Range

SIZE

120 x 140 x 20 mm


* = Optional

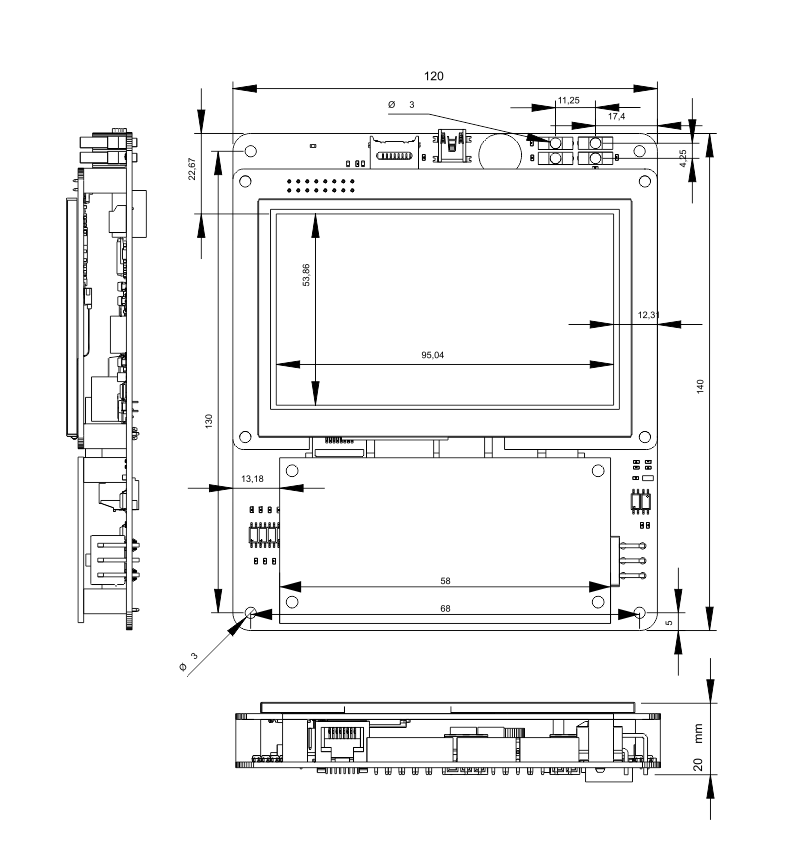

MECHANICAL SPECIFICATIONS
