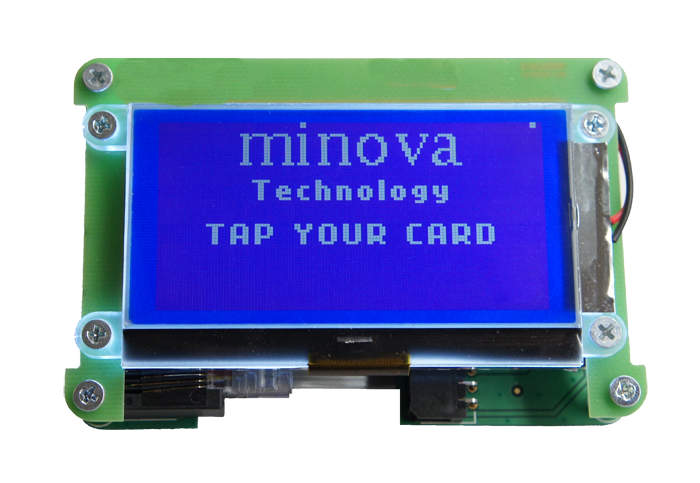

MCR04-G OEM
RFID & Access Control Terminal

MCR04-G is a multi-purpose, programmable 13.56 MHz RFID Card Reader & Communication terminal usable in Access Control, PACS, Closed Circuit Payment Systems, Telemetry & IoT, Automation, etc. Compared to the MCR04 series, it has a large memory structure and supports rich communication technologies such as PoE Ethernet and GPRS / Wi-Fi / Bluetooth.



Specifications:

  • 13.56 MHz Contactless MIFARE/RFID Reader (4-Byte, 7- Byte UID Support)

  • 3.3” 128x64 Pixel Blue-White Monochrome LCD Display

  • Ethernet

  • PoE IEEE 802.3af

  • Internal GSM/GPRS/2G Modem or IEEE 802.11 b/g/n Wi- Fi + Bluetooth 4.2 Communication

  • Online/Offline Operation

  • Easy Configuration & Control Over Network

  • Internal Relay & Digital Input

  • Software Development Kit for System Integrators

TECHNICAL SPECIFICATIONS

READ-WRITE

MIFARE® ISO14443A (B*)
5cm Contactless Card Reading Range

Classic, Plus and Ultralight Contactless Card Read/Write

50 Ω External RFID Antenna Output Port

DISPLAY

3.3" Graphic LCD, 128 x 64 Pixel Resolution
LED Backlight Blue-Write Display

PROCESSOR

32-bit ARM Cortex CPU

MEMORY

8 GB Internal microSD Memory Card

1 MB Internal Memory

COMMUNICATION

Ethernet 10/100Base-T

Integrated TCP/IP ( UDP,ICMP, FTP, NTP, Ping ) Software Cluster

Internal GSM/GPRS 2G Modem*

Internal Wi-Fi IEEE 802.11 b/g/n and Bluetooth BLE 4.2 Modem*

Remote Configuration with MiFinder Software over Local Area Network


RS232 Port (300-115200 Baud)*
RS485 Port (300-115200 Baud)*

INPUT/OUTPUT

2x Relay Outputs (1.5A Dry Contact)

4x Optically-Isolated Digital Inputs

ADDITIONAL SPECIFICATIONS

Online/Offline Operation Mode

Battery Backup Internal Real Time Clock (RTC)

Internal Re-Chargeable Battery*

Buzzer Audio Alert

2 LED Indicators*

POWER

6-60V DC Operating Voltage
PoE IEEE 802.3af

ENVIRONMENTAL CONDITIONS

-30 °C … +75 °C Industrial Operating Range

-40 °C … +85 °C Storage Range

SIZE

99 x 65 x 19 mm


* = Optional

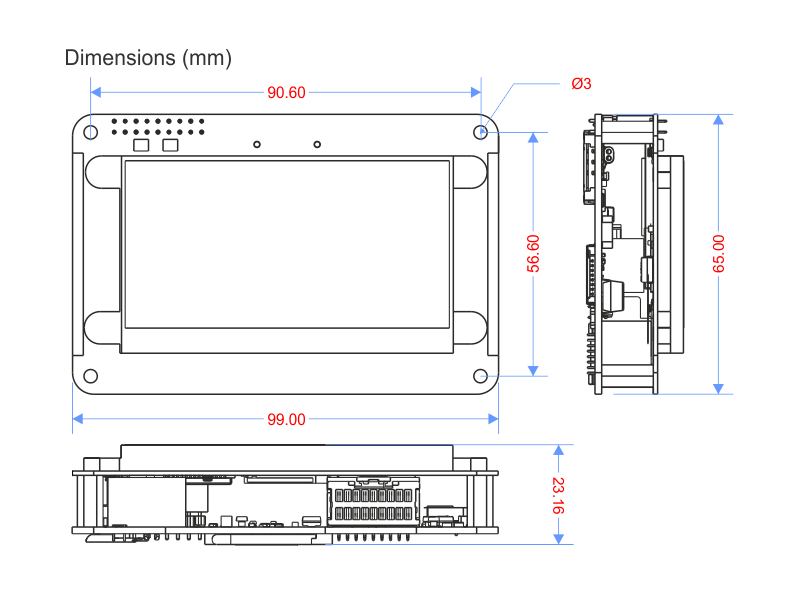

MECHANICAL SPECIFICATIONS
